True Blue Power TA360 MAX Power TSO'd USB Charger Overview:

True Blue Power TA360 MAX Power TSO'd USB Charger

The True Blue Power TA360 MAX Power USB charger delivers some of the highest power output available in an aviation-certified USB charging port. Using modern USB Power Delivery (PD) technology, these chargers provide intelligent voltage negotiation to deliver the maximum safe charging power for connected devices.

Depending on the model, TA360 MAX chargers provide up to 100 watts per port, making them capable of powering everything from mobile phones and tablets to laptops and other high-demand electronics. The chargers automatically communicate with the connected device and cable to determine the correct voltage and current, ensuring fast charging while protecting the device from incorrect power levels.

TA360 chargers accept 22 to 32 VDC aircraft power and convert it to regulated USB output between 5 and 20 volts. Each unit incorporates built-in protection against short circuit, over-current, reverse polarity, and temperature extremes. True Blue Power’s Cable Drop Compensator technology also helps offset voltage losses through longer cables to maintain optimal charging performance.

These TSO-certified chargers are compact and easy to install with a simple two-wire power input. They can be mounted in-seat, in the cabin, cockpit, galley, or other aircraft locations, and are a drop-in replacement for earlier True Blue Power TA102 and TA202 charging ports.

True Blue Power TA360 MAX Charger Features

• USB Power Delivery (PD) fast charging technology
• Up to 100 watts of charging power per port depending on model
• Intelligent voltage negotiation with connected devices
• Cable Drop Compensator technology to maintain charging performance
• Built-in protection for short circuit, over-current, reverse polarity, and temperature conditions
• Compact design with simple two-wire aircraft power input
• Drop-in replacement for True Blue Power TA102 and TA202 charging ports
• TSO certified for aircraft installation
• Designed for installation in-seat, cabin, cockpit, or galley

Available TA360 MAX Power Charger Configurations

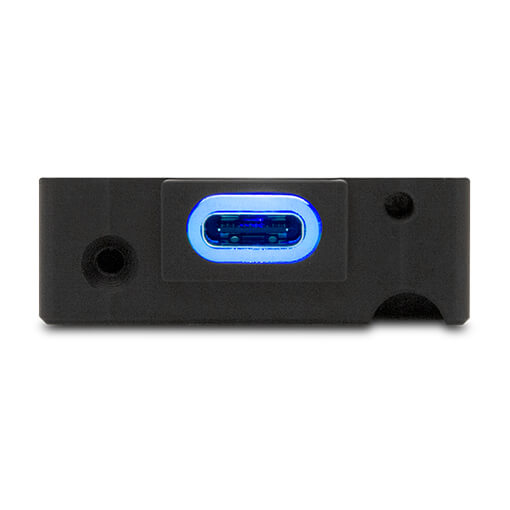

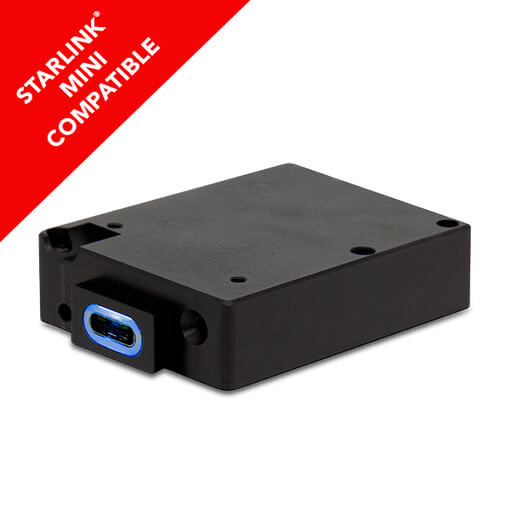

6430360-37 – 100W USB-C (Lighted) – Starlink Compatible

• Single USB-C Power Delivery port
• Up to 100 W output
• 5.0 amps maximum output current
• Weight: 1.0 oz
• Dimensions: 1.5"W x 0.52"H x 2.0"D

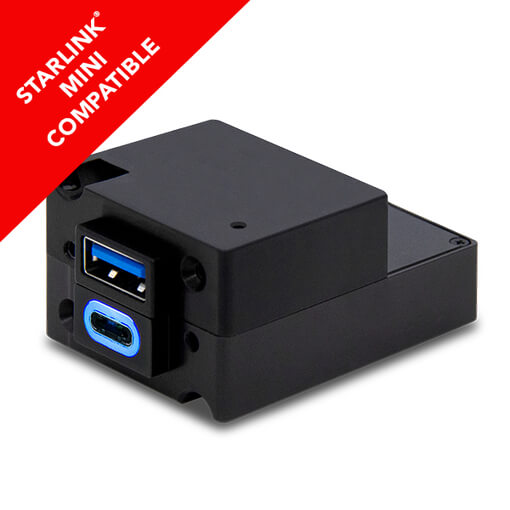

6430360-31 – 100W USB-C + USB-A (Lighted) – Starlink Compatible

• Dual ports: USB-C PD and USB-A
• USB-C output up to 100 W
• USB-A output up to 15 W
• USB-C output current: 5.0 amps
• USB-A output current: 3.0 amps
• Weight: 1.8 oz
• Dimensions: 1.5"W x 1.03"H x 2.0"D

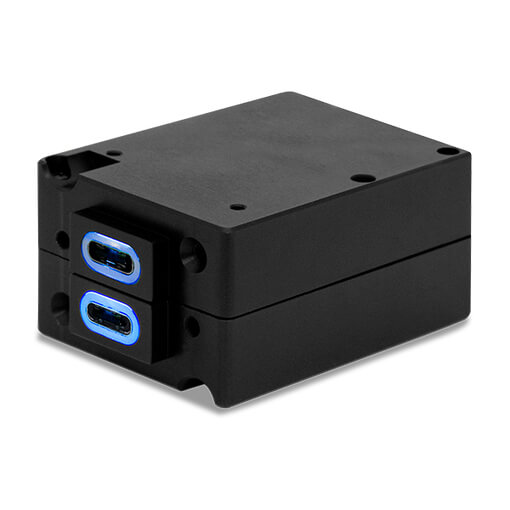

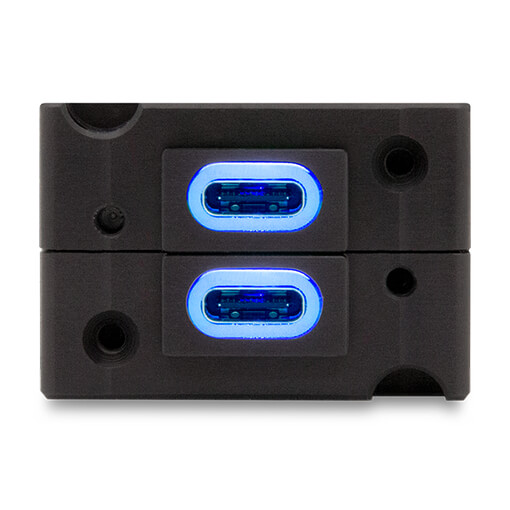

6430360-13 – Dual USB-C 60W (Lighted)

• Dual USB-C Power Delivery ports
• Up to 60 W per port
• Output current: 3.0 amps per port
• Weight: 2.5 oz
• Dimensions: 1.5"W x 1.03"H x 2.0"D

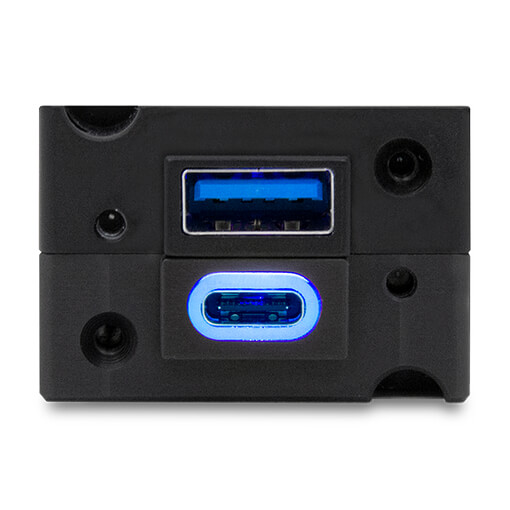

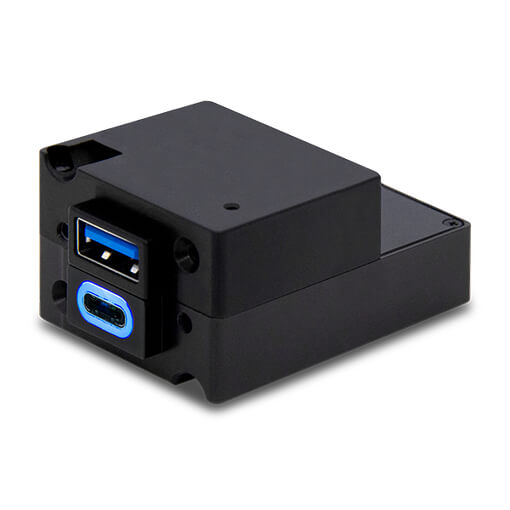

6430360-11 – USB-C + USB-A 60W (Lighted)

• USB-C Power Delivery port and USB-A port
• USB-C output up to 60 W
• USB-A output up to 15 W
• Output current: 3.0 amps per port
• Weight: 1.8 oz
• Dimensions: 1.5"W x 1.03"H x 2.0"D

General Technical Specifications

• Input voltage: 22 to 32 VDC
• USB output voltage range: 5 to 20 VDC depending on device negotiation
• Maximum output current: up to 5.0 amps depending on model
• USB connectors: USB-C PD or USB-C plus USB-A depending on configuration
• Mating connector kit: MCI P/N 9017960 (included)
• Mounting: front or rear mount; optional faceplates and adapter plates available
• Installation locations: in-seat, cabin, cockpit, or galley

Compatibility Notes

True Blue Power USB chargers are not compatible with Starlink manufactured USB-C to barrel jack cables. A third-party validated cable is required. Only the 100W models are compatible with Starlink.
