RAM Tab-Tite with RAM Twist-Lock Suction Cup for Tablets with Cases Overview:

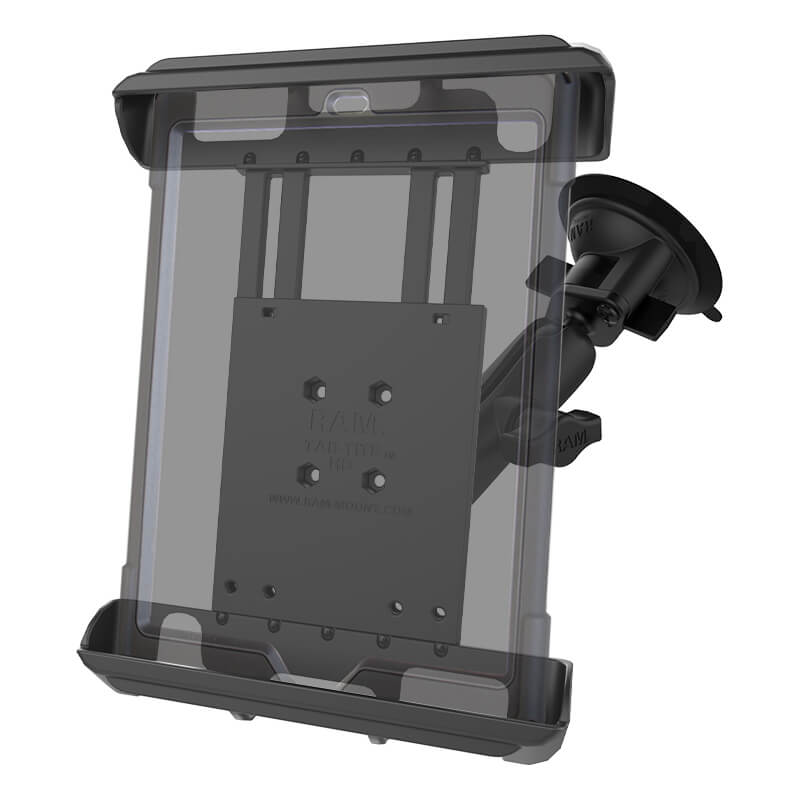

The RAM Tab-Tite with RAM Twist-Lock Suction Cup for Tablets with Cases consists of a 3.3" diameter suction cup twist lock base, double socket arm, round base adapter and Tab-Tite universal clamping cradle.

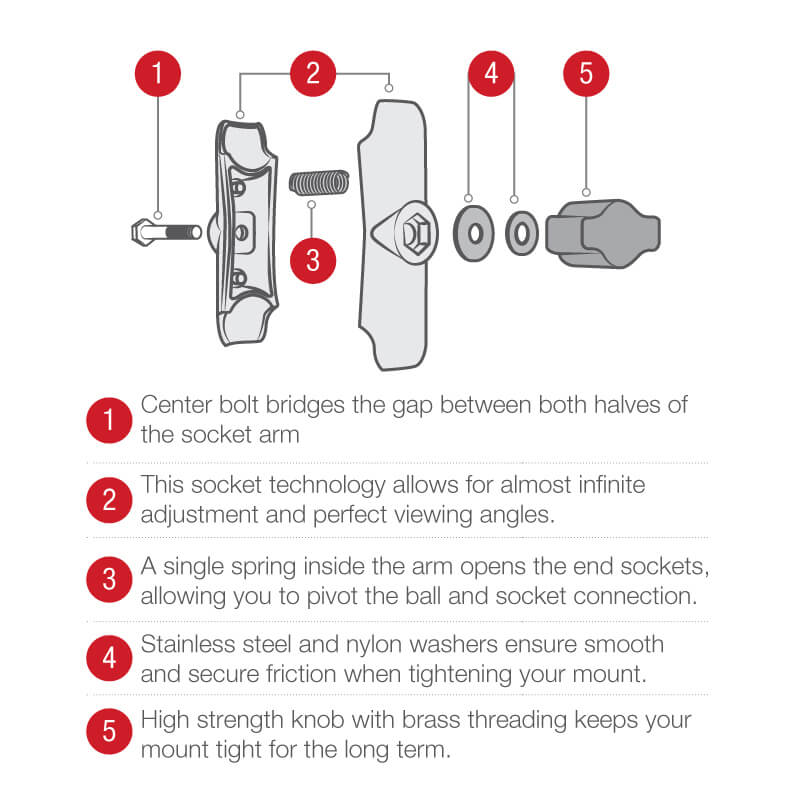

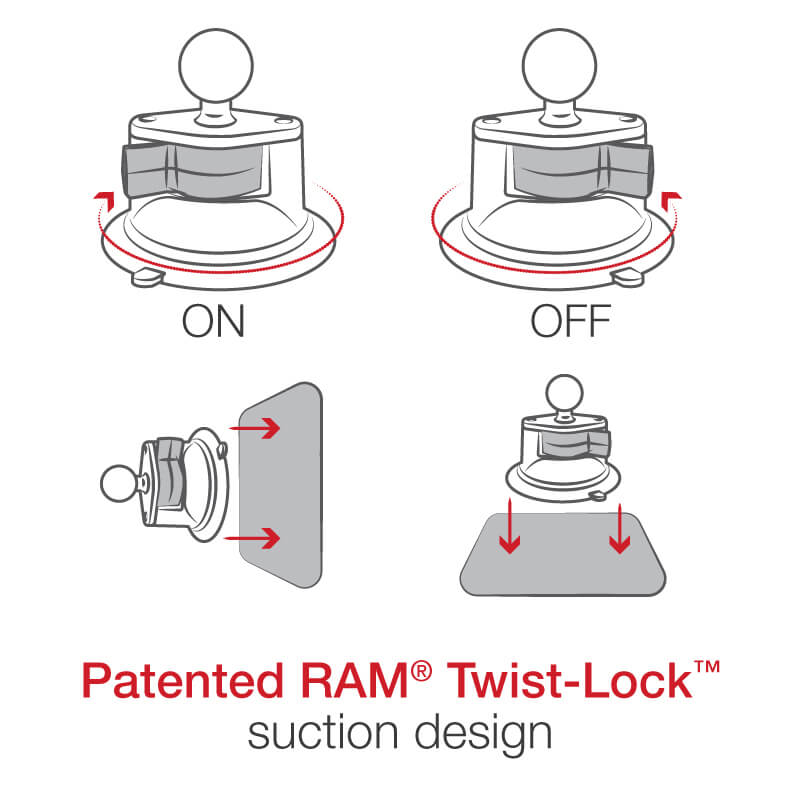

The RAM-B-166-TAB8U consists of a 3.3" diameter suction cup twist lock base, double socket arm, round base adapter and Tab-Tite universal clamping cradle. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included Tab-Tite cradle includes a spring loaded back plate and custom support cups for 10" screen tablets WITH heavy duty cases. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

RAM Tab-Tite with RAM Twist-Lock Suction Cup for Tablets with Cases Specs:

• Hardware Included: Assembly Hardware
• Ball Size: B Size (1")
• Holder Dimensions: Height Range: 9" - 11.5"|Width Range: 6.38" - 8.31"|Depth Range: .13" - 1.12"
• Suction Size: 3.3" Diameter
• Socket To Socket Length: 3"

This kit includes these RAM products:

• RAM Tab-Tite Tablet Holder for Apple iPad Pro 9.7 with Case + More (RAM-HOL-TAB8U)
• RAM Twist-Lock Suction Cup Double Ball Mount with Round Plate - Medium (RAM-B-166-202U)

RAM Mounts Part Number: RAM-B-166-TAB8U
