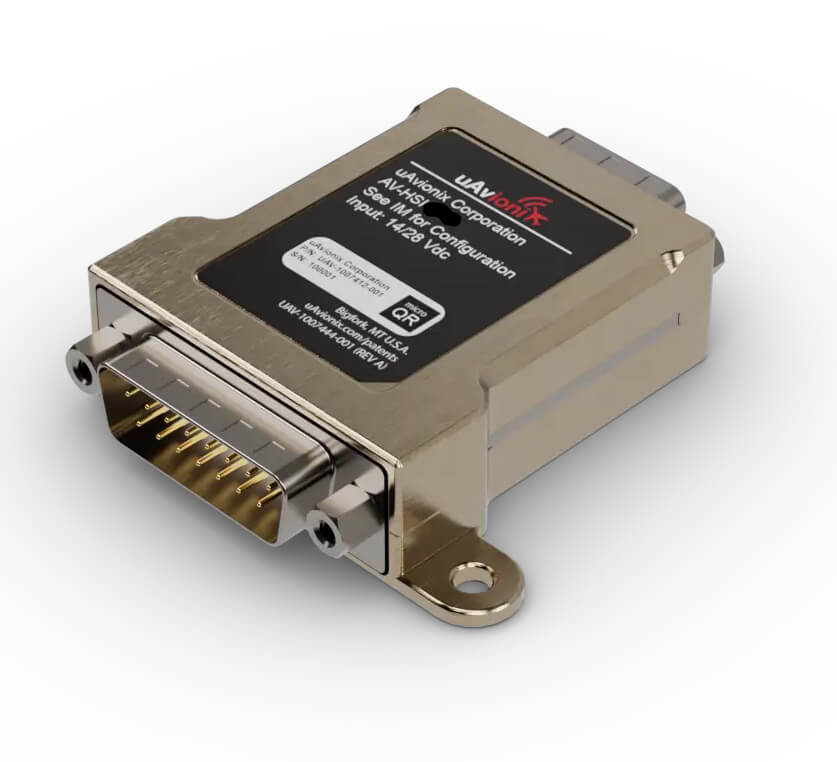

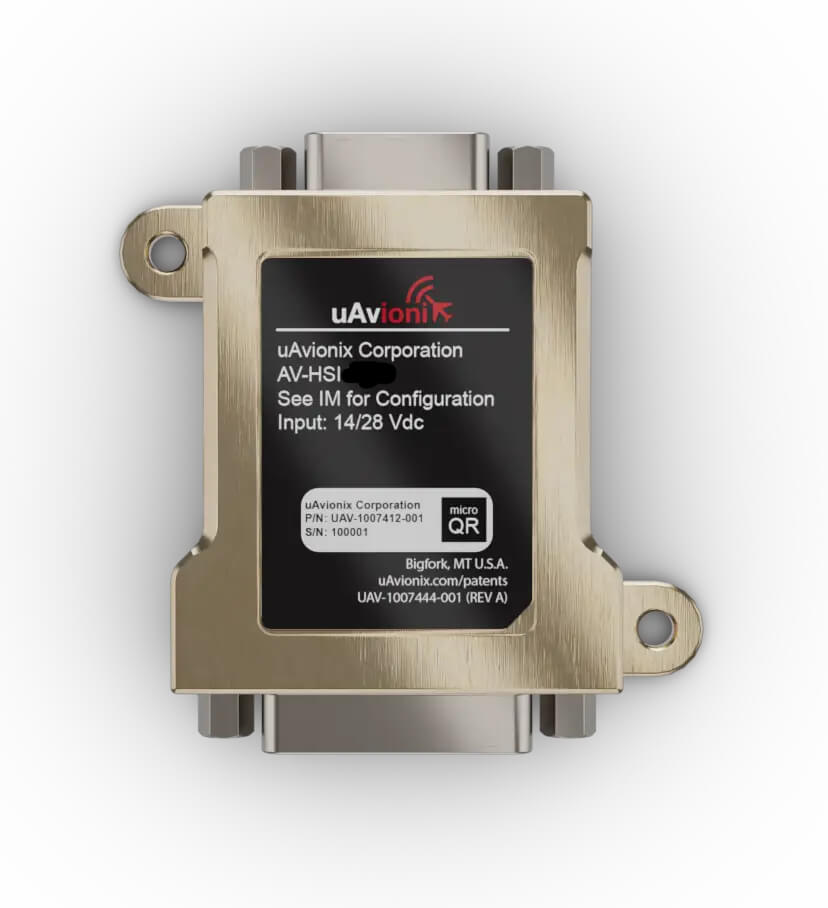

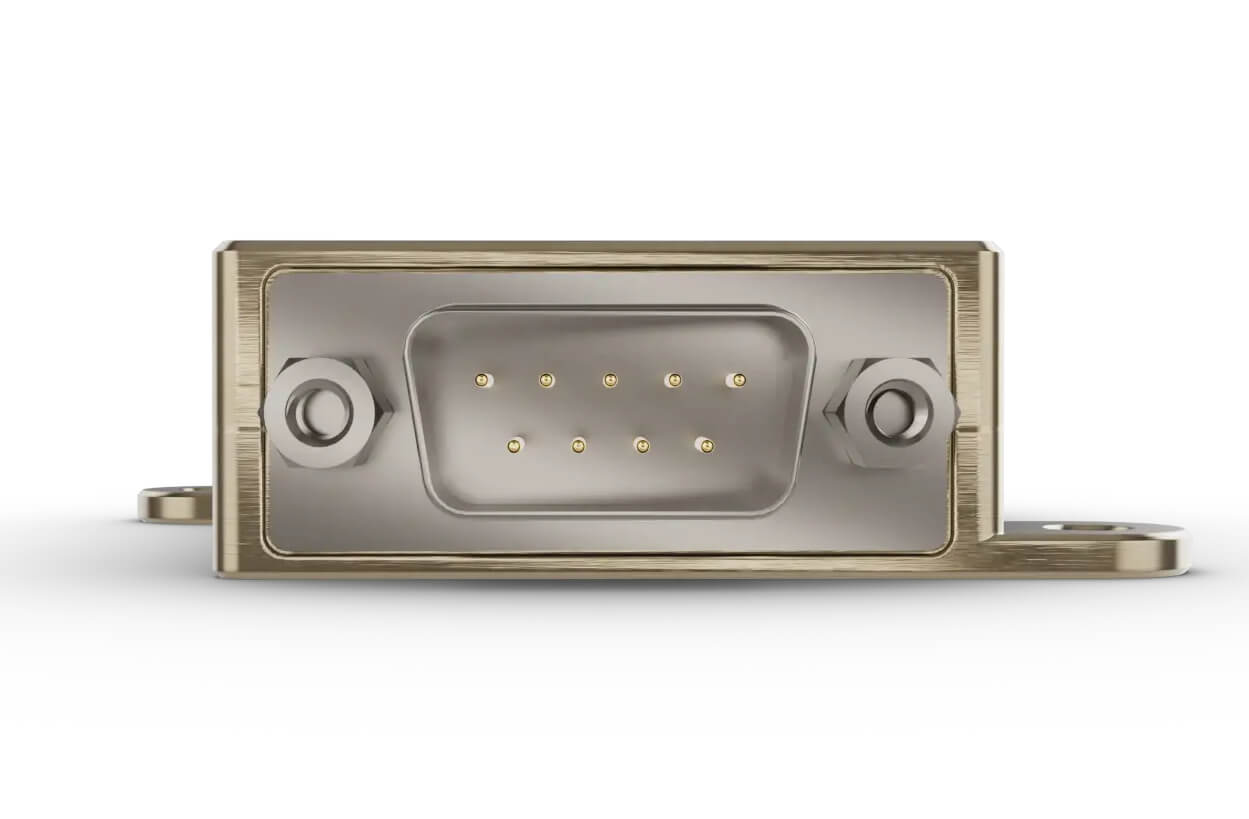

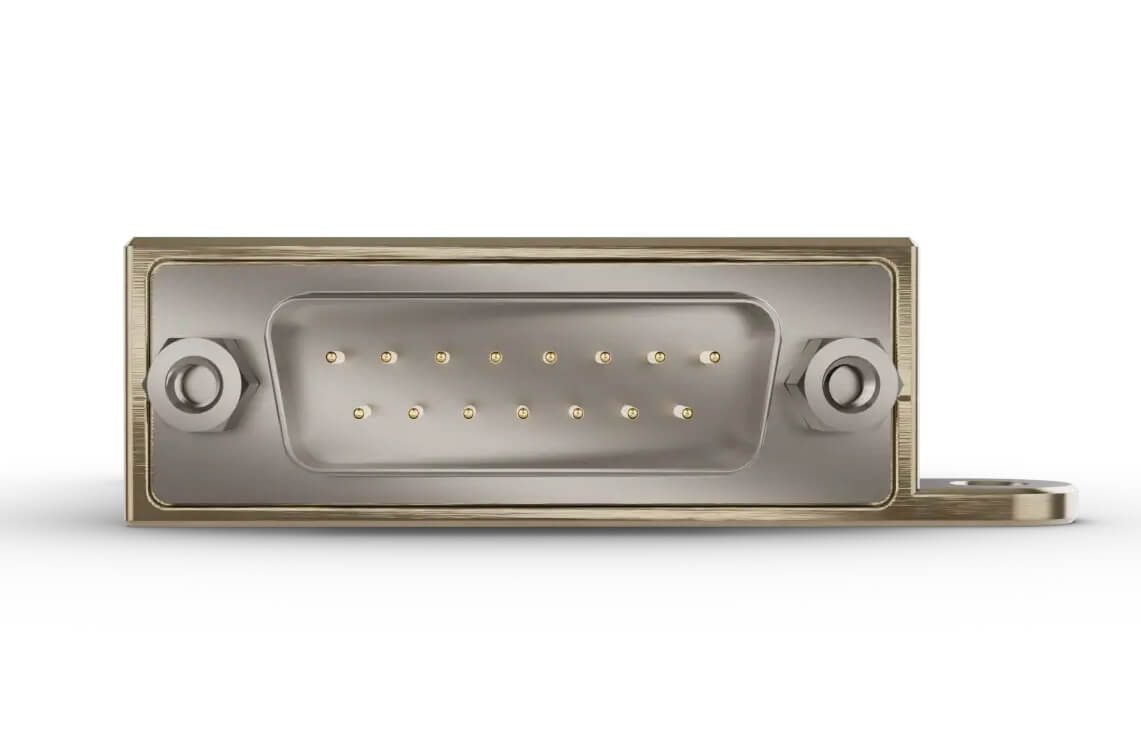

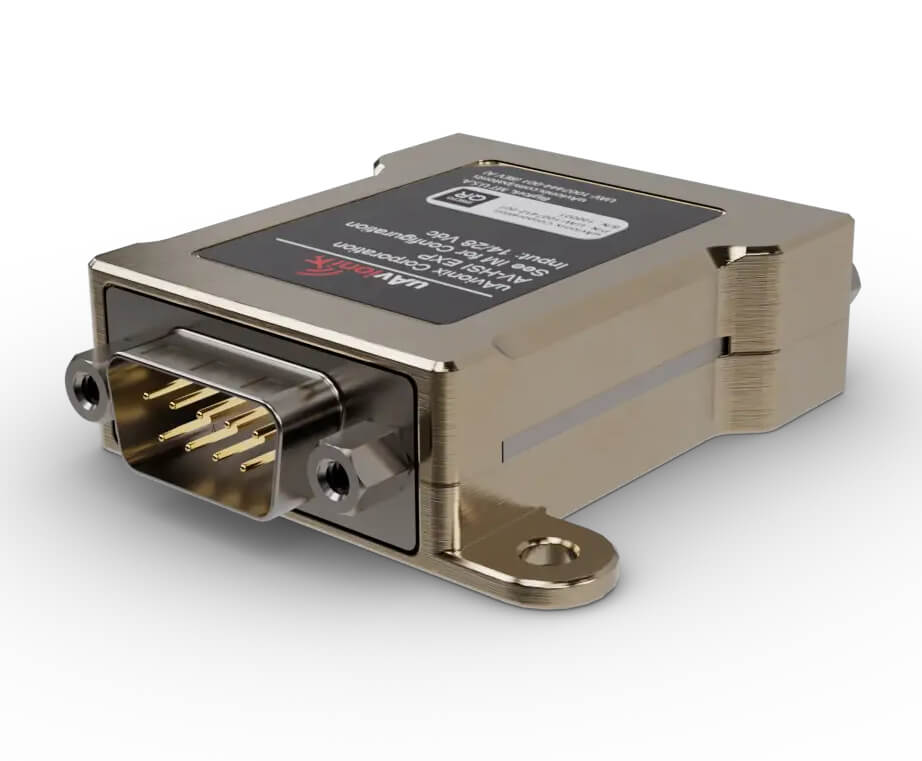

uAvionix AV-HSI PMA for AV-30 Display

uAvionix
    • Item #15708
    • PN: UAX-90105-01
  • Item #15708
Qty

The uAvionix AV-HSI PMA turns the AV-30-C into an IFR navigation display for certified aircraft, providing course and glideslope guidance for ILS (Instrument Landing System) and LPV (Localizer Performance with Vertical Guidance) approaches.

AV-HSI connects to most panel-mounted GPS navigators through three ARINC 429 channels (2 receive, 1 transmit), and four serial ports connect to NAV/COMM radios. It also works as a hub for multiple AV-30 displays, sharing navigation guidance and keeping heading bug, barometric setting and outside air temperature in sync to reduce workload. Connected to an IFR-approved navigator, the AV-30-C can be your primary navigation display.

uAvionix AV-HSI PMA features:

  • Seamless integration: Adds course and glideslope guidance for ILS and GPS approaches to the AV-30.
  • Multi-channel compatibility: Three ARINC 429 channels and four serial ports for GPS navigators and NAV/COMM radios.
  • Centralized synchronization: Acts as a hub for multiple AV-30 displays.
  • GPS steering: Enables GPSS with the AV-APA PMA and its software unlock.
  • Compact form factor: Remote mounts, measures 2.3" x 2.3" x 0.74" and weighs 1.8 oz.

Supported GPS navigators:

  • Avidyne IFD 410/440
  • Avidyne IFD 510/540/545
  • Garmin GPS 400(W) / GNC 420(W)
  • Garmin GNS 430(W) / 530(W)
  • Garmin GTN 650(Xi) / 750(Xi)
  • Garmin GPS 175 / GNC 355 / GNX 375
  • Garmin GPS 155XL / 300XL

Supported NAV/COMM radios:

  • Avidyne IFD 440
  • Avidyne IFD 540/550
  • Garmin GNS 430(W) / 530(W)
  • Garmin GNC 215
  • Garmin GTN 650(Xi) / 750(Xi)
  • Garmin GNC 255
  • Garmin / Apollo SL30
  • Trig TX56(A)

Supported autopilots:

  • Trio Pro Pilot (software 220322F or later with the Trio EFIS unlock)
  • TruTrak Vizion PMA
  • BendixKing AeroCruze 100 / xCruze 100 (software PV.40 or later)

What's included:

  • AV-HSI PMA
  • AV-HSI installation kit
  • Certificate of Conformance
  • Getting Started card

AV-HSI PMA requires a uAvionix AV-30-C and an AV-Mag external magnetometer, with AV-30 software 3.0.1 or later. Up to four AV-30 displays can be connected. A certified technician is recommended for installation. For experimental aircraft, see the AV-HSI EXP.
