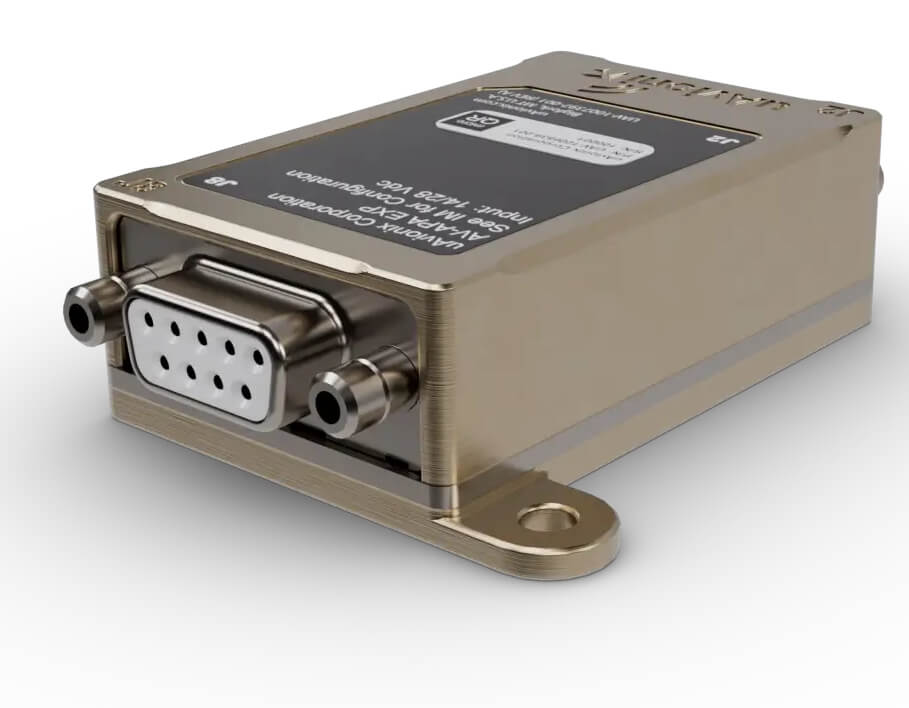

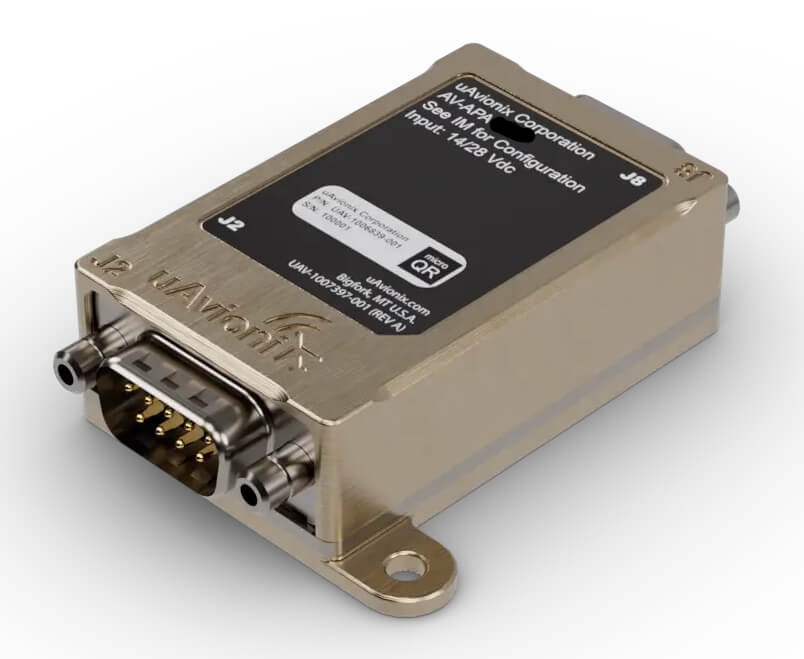

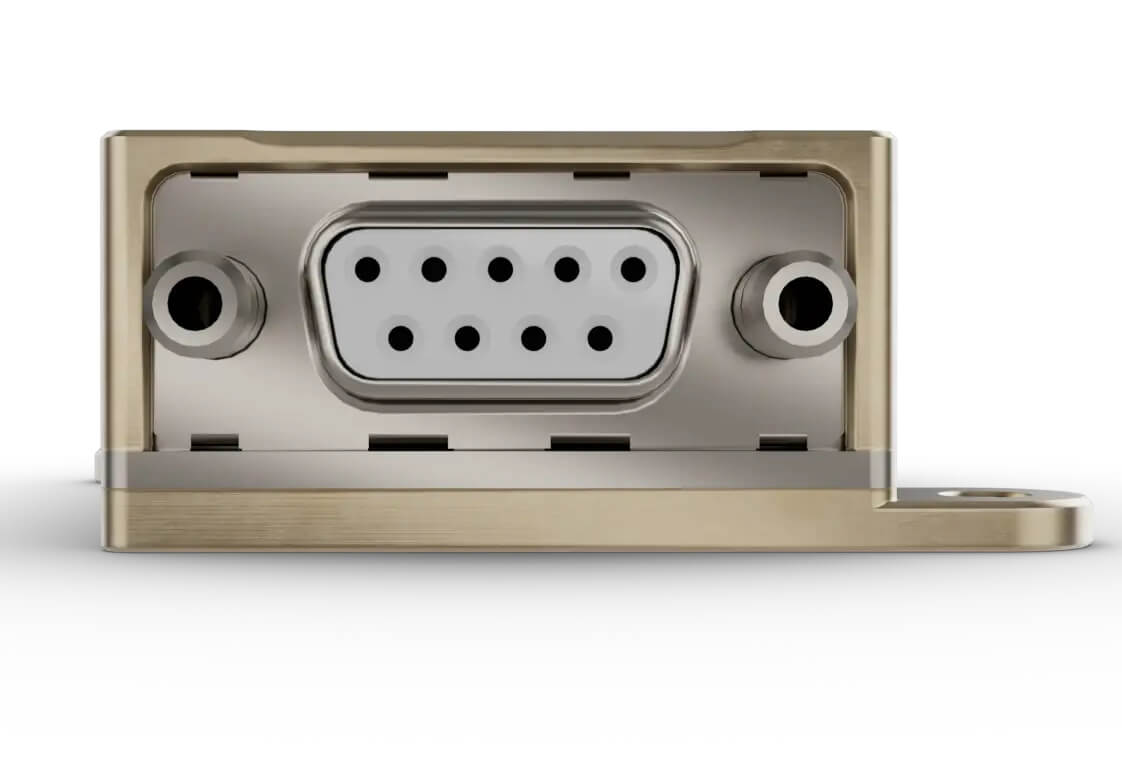

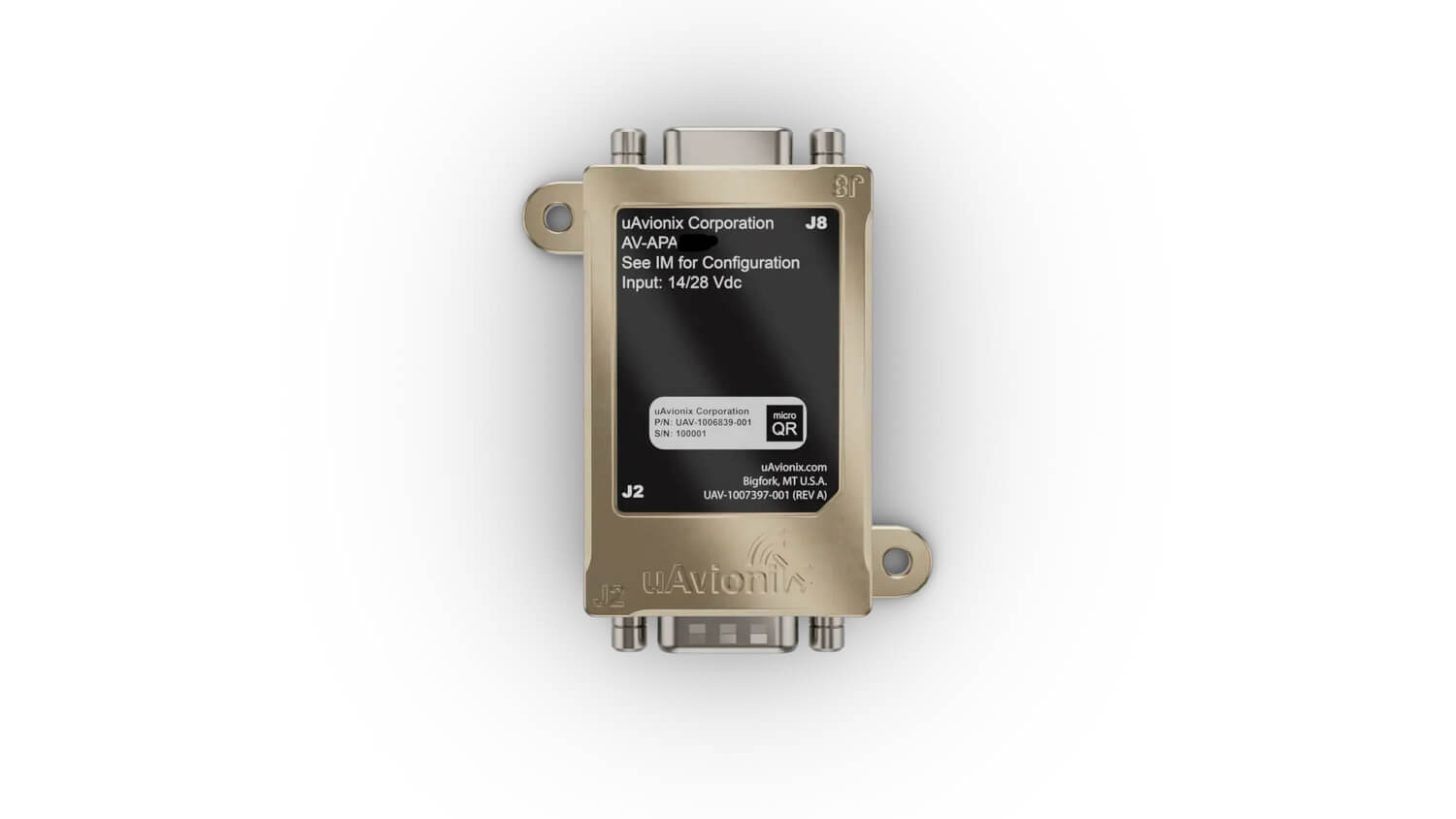

uAvionix Analog Port Adapter AV-APA PMA for AV-30 Display

uAvionix
    • Item #15707
    • PN: UAX-90104-01
  • In Stock
  • Item #15707
Qty

The uAvionix AV-APA PMA (Analog Port Adapter) lets owners of certified aircraft with a legacy S-TEC autopilot replace their old, heavy, vacuum-driven directional gyro with a lighter and more capable uAvionix AV-30-C, and potentially remove the vacuum system entirely.

AV-APA emulates the analog heading signal that legacy autopilots expect, so the autopilot keeps its heading hold and gains the ability to follow GPS tracks from a portable or IFR GPS through the AV-30. For many legacy autopilots, that's a significant step up in capability.

uAvionix AV-APA PMA features:

  • Seamless integration: Connects to the AV-30 with standard connectors for a straightforward installation.
  • Heading hold: Maintains precise heading control through the AV-30 heading bug.
  • GPS track following: Follows GPS tracks through the AV-30, improving navigation accuracy and reducing pilot workload.
  • Compact remote mount: Measures just 2.2" x 2.6" x 0.8".

Supported modes:

  • DG heading hold
  • GPS desired track
  • GPS track hold
  • GPS bearing (waypoint) hold
  • GPS steering (GPSS), a separate software unlock that requires the AV-HSI PMA

Supported autopilots: S-TEC System 20, 30, 40, 50, 55, 55X, 60-1, 60-2 and 65.

Requirements:

  • An AV-30 (wire the AV-APA to one AV-30 only, set up as the AI or DG)
  • An AV-Mag external magnetometer, which uAvionix requires for AV-APA
  • The S-TEC autopilot must be reconfigured for a KCS55A system by an S-TEC dealer, so it is not plug and play
  • GPS steering also needs an AV-HSI, a GPS navigator and the Advanced AP Unlock
  • Not compatible with Century autopilots

What's included:

  • AV-APA PMA
  • Installation kit with connectors, connector housings and pins
  • Certificate of Conformance
  • Getting Started card

AV-APA PMA requires a uAvionix AV-30-C and an AV-Mag. A certified technician is recommended for installation. For experimental aircraft, see the AV-APA EXP.

Documents (PDF):

Lowest Price Guaranteed!

If you find a better price elsewhere on this product we will Match that price and beat it by 10% of the difference. See Details.

Buy with Confidence!

Purchase today and you can return it in the original condition through Monday, January 11, 2027!   See our return policy.

uAvionix Analog Port Adapter AV-APA PMA for AV-30 Display

  • In Stock
  • Item #15707
  • PN: UAX-90104-01
Qty

uAvionix Analog Port Adapter AV-APA PMA for AV-30 Display Overview:

The uAvionix AV-APA PMA (Analog Port Adapter) lets owners of certified aircraft with a legacy S-TEC autopilot replace their old, heavy, vacuum-driven directional gyro with a lighter and more capable uAvionix AV-30-C, and potentially remove the vacuum system entirely.

AV-APA emulates the analog heading signal that legacy autopilots expect, so the autopilot keeps its heading hold and gains the ability to follow GPS tracks from a portable or IFR GPS through the AV-30. For many legacy autopilots, that's a significant step up in capability.

uAvionix AV-APA PMA features:

  • Seamless integration: Connects to the AV-30 with standard connectors for a straightforward installation.
  • Heading hold: Maintains precise heading control through the AV-30 heading bug.
  • GPS track following: Follows GPS tracks through the AV-30, improving navigation accuracy and reducing pilot workload.
  • Compact remote mount: Measures just 2.2" x 2.6" x 0.8".

Supported modes:

  • DG heading hold
  • GPS desired track
  • GPS track hold
  • GPS bearing (waypoint) hold
  • GPS steering (GPSS), a separate software unlock that requires the AV-HSI PMA

Supported autopilots: S-TEC System 20, 30, 40, 50, 55, 55X, 60-1, 60-2 and 65.

Requirements:

  • An AV-30 (wire the AV-APA to one AV-30 only, set up as the AI or DG)
  • An AV-Mag external magnetometer, which uAvionix requires for AV-APA
  • The S-TEC autopilot must be reconfigured for a KCS55A system by an S-TEC dealer, so it is not plug and play
  • GPS steering also needs an AV-HSI, a GPS navigator and the Advanced AP Unlock
  • Not compatible with Century autopilots

What's included:

  • AV-APA PMA
  • Installation kit with connectors, connector housings and pins
  • Certificate of Conformance
  • Getting Started card

AV-APA PMA requires a uAvionix AV-30-C and an AV-Mag. A certified technician is recommended for installation. For experimental aircraft, see the AV-APA EXP.

Documents (PDF):



0 CUSTOMER REVIEWS

1 QUESTIONS & ANSWERS

  • Previously Asked Questions

  • Friday, February 13, 2026

    Q: Does this unit have a fan installed

    A: No, there is no internal fan on this adapter.
