Q: Does fit in, Bose ProFlight Series 2 Aviation Headset?

A: Yes, this is made specifically for the Bose ProFlight Series 2 headsets.

Q: Does this works whit Bose Proflight Series1?.

A: Yes, this would also be compatible with the Bose Proflight 1.

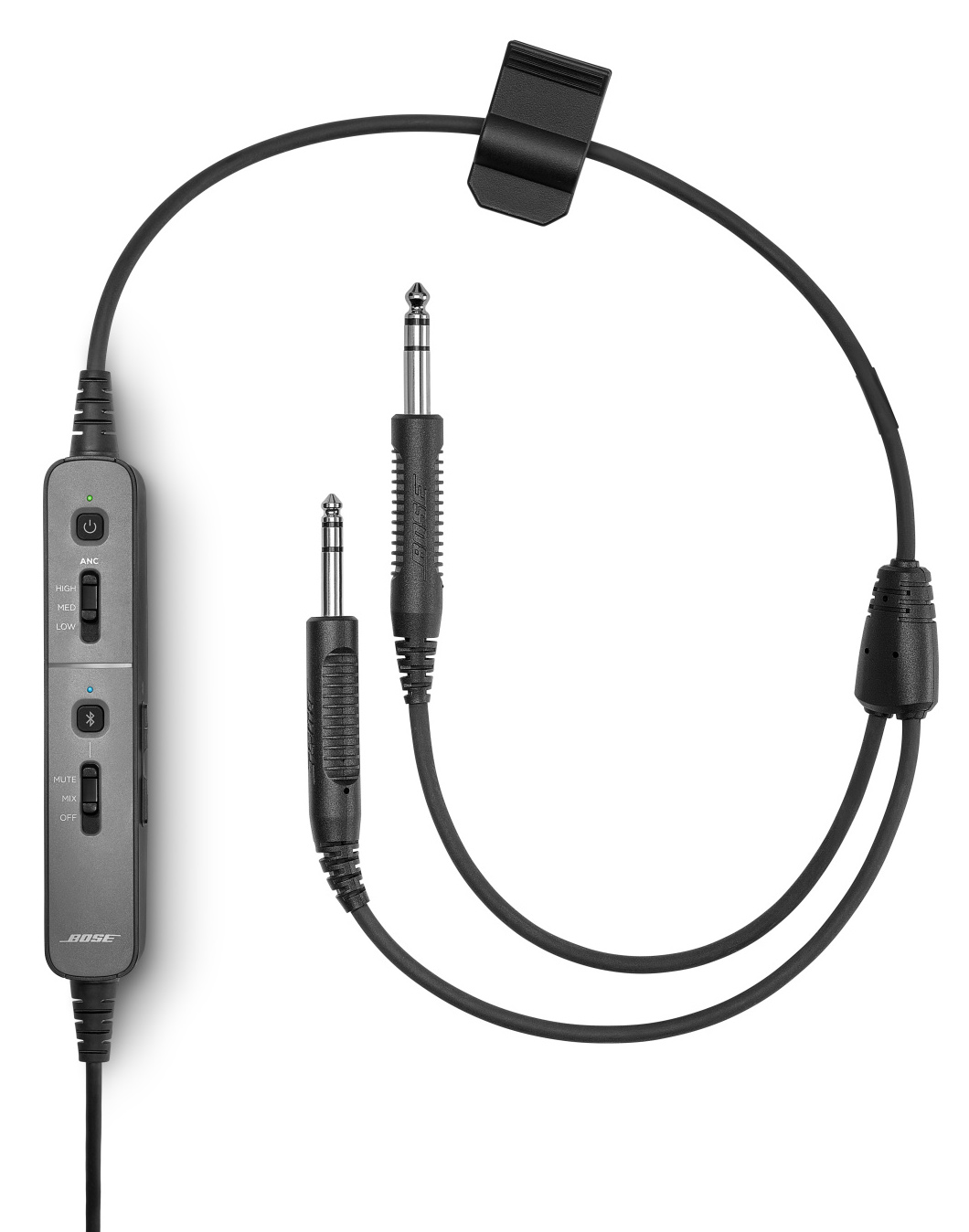

Q: Is the boom mic included in this cable assembly? The description says it does, but the pics don't show it.

A: Yes, this includes the microphone as well.  Everything from the headset down is included in one assembly.

Q: I have Bose proflight series 2 XLR 5 pin for airbus. now I will change my aircraft type and I must use general aviation dual plugs. how can i assemble this assembly. I couldn't imagine. can you explain it or do you have more photos?

A: Removing or replacing the ProFlight cable assembly is quick and easy.  On the microphone connector at the headset, push the release button and gently pull the connector from the headset. Tip: You might need to rotate the side pad to access the connector.
This procedure also allows you to switch the boom from the left to the right side (or vice versa).
1. On the terminal cover at the other side of the headset, push the release button and gently pull the cover from the headset
2. Connect the terminal cover to the opposite side of the headset by aligning the release button on the cover to the button opening on the headset, then slide the cover into the headset Note: Do not force the cover. If you have difficulty, check that it is aligned properly. If it does not connect, the headset will not product sound.
3. Connect the microphone to the opposite side of the headset by aligning the release button on the microphone connector to the button opening on the headset, then slide the connector into the headset Note: Do not force the connector. If you have difficulty, check that it is aligned properly. If it does not connect, the headset will not product sound
