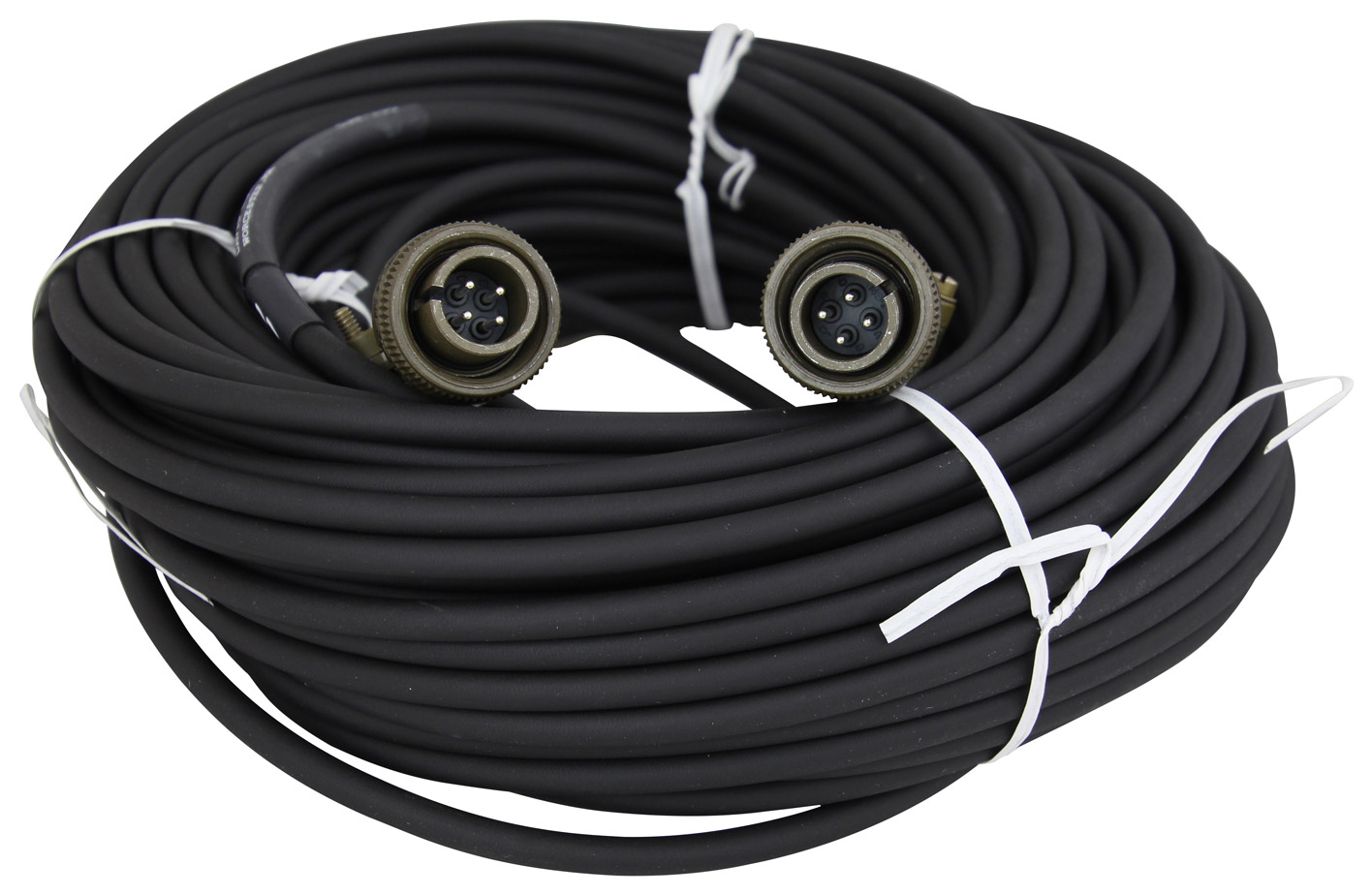

David Clark C38-100 Jumper Cord Assembly 100 Foot

David Clark Headsets
    • List Price:
    • Item #10976
    • PN: 18747G-04
  • List Price:
  • Item #10976
Qty

The David Clark C38-100 is a 100-foot system jumper cord for the Series 3800 Vehicle Intercom System. Jumper cords connect each module in a 3800 system, such as headset stations, radio interface modules and junction modules, back to the U3800 Master Station, building the intercom network that lets every connected crew member talk and listen. For example, a C38-100 can run between the U3800 and a U3801 Remote Headset Station.

Each cord uses heavy-duty, 4-conductor shielded cable with a UV and oil resistant outer jacket and a 4-pin MS-type (military-style) screw-on connector on each end. Installation is plug-in: line up the key-way, push the connector in until it is firmly seated, and hand-tighten the swivel nut. No soldering is required.

David Clark C38-100 Jumper Cord features:

  • Length: 100 feet. The number after the dash in a C38 model is the cord length in feet.
  • Connectors: 4-pin MS-type screw-on connector (MS3106F-14S-2P) on both ends.
  • Cable: Heavy-duty, 4-conductor shielded cable with a UV and oil resistant outer jacket.
  • Wiring: Pin to pin: A listen line, B regulated voltage (Vreg), C ground, D talk line.
  • System connections: Any Series 3800 headset station or intercom junction module connected with a C38 jumper becomes part of the intercom system. Jumper cords also connect a U9922-G38 Wireless Gateway to a 3800 system, adding up to four wireless users.
  • David Clark part number: 18747G-04

Series 3800 system jumper cords are also available in other lengths: C38-12 (12 ft), C38-25 (25 ft), C38-35 (35 ft), C38-50 (50 ft). Repairing a cord end? See the C38 4-pin MS connector kit.

The Series 3800 Vehicle Intercom System is built for communication in high-noise mobile environments such as fire apparatus, rescue vehicles, ambulances, command and control vehicles, airline deicers and paint stripers.

Lowest Price Guaranteed!

If you find a better price elsewhere on this product we will Match that price and beat it by 10% of the difference. See Details.

Buy with Confidence!

Purchase today and you can return it in the original condition through Sunday, December 20, 2026!   See our return policy.

David Clark C38-100 Jumper Cord Assembly 100 Foot

  • List Price:
  • Item #10976
  • PN: 18747G-04
Qty

David Clark C38-100 Jumper Cord Assembly 100 Foot Overview:

The David Clark C38-100 is a 100-foot system jumper cord for the Series 3800 Vehicle Intercom System. Jumper cords connect each module in a 3800 system, such as headset stations, radio interface modules and junction modules, back to the U3800 Master Station, building the intercom network that lets every connected crew member talk and listen. For example, a C38-100 can run between the U3800 and a U3801 Remote Headset Station.

Each cord uses heavy-duty, 4-conductor shielded cable with a UV and oil resistant outer jacket and a 4-pin MS-type (military-style) screw-on connector on each end. Installation is plug-in: line up the key-way, push the connector in until it is firmly seated, and hand-tighten the swivel nut. No soldering is required.

David Clark C38-100 Jumper Cord features:

  • Length: 100 feet. The number after the dash in a C38 model is the cord length in feet.
  • Connectors: 4-pin MS-type screw-on connector (MS3106F-14S-2P) on both ends.
  • Cable: Heavy-duty, 4-conductor shielded cable with a UV and oil resistant outer jacket.
  • Wiring: Pin to pin: A listen line, B regulated voltage (Vreg), C ground, D talk line.
  • System connections: Any Series 3800 headset station or intercom junction module connected with a C38 jumper becomes part of the intercom system. Jumper cords also connect a U9922-G38 Wireless Gateway to a 3800 system, adding up to four wireless users.
  • David Clark part number: 18747G-04

Series 3800 system jumper cords are also available in other lengths: C38-12 (12 ft), C38-25 (25 ft), C38-35 (35 ft), C38-50 (50 ft). Repairing a cord end? See the C38 4-pin MS connector kit.

The Series 3800 Vehicle Intercom System is built for communication in high-noise mobile environments such as fire apparatus, rescue vehicles, ambulances, command and control vehicles, airline deicers and paint stripers.
