David Clark C38-21RD1 Radio Interface Cable Assembly

David Clark Headsets
    • List Price:
    • Item #10446
    • PN: 18747G-48
  • List Price:
  • Item #10446
Qty

The David Clark C38-21RD1 Radio Interface Cable Assembly is a turnkey cable for connecting Motorola XTL and APX series mobile radios to a Series 3800 Vehicle Intercom System. It runs between any Series 3800 Radio Interface Module and the radio or its control head, making the radio's receive and transmit functions part of the intercom.

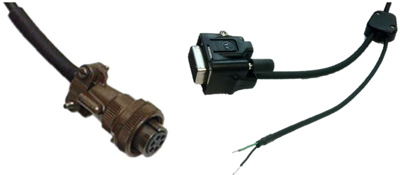

One end has a military-style screw-on connector for the radio interface module. The other has a 26-pin trapezoidal XTL/APX connector plus two flying leads, so it can be installed at the transceiver or at a remote control head:

  • Transceiver installation: Plugs into the J2 connector on the back of the radio. The flying leads are not used; cut them flush and protect them with heat shrink tubing.
  • Control head installation: Plugs into the J100 connector on the back of the control head. The green and black flying leads connect to J200 pins 1 and 2, in parallel with the external speaker if one is installed. O5 and O9 control heads only.

David Clark C38-21RD1 features:

  • Motorola compatibility: XTL and APX series radios, and O5 and O9 control heads.
  • Receive audio: Set with the radio or control head volume control. For fixed-level receive audio, contact David Clark.
  • Connections: Talk, listen, PTT and ground.
  • Cable: 21 ft of 6-conductor, individually shielded, 26 AWG cable (0.220" outer diameter).
  • David Clark part number: 18747G-48

For other mobile radios, the universal C3821 Radio Interface Cord has stripped and tinned leads for custom wiring.

The Series 3800 Vehicle Intercom System is built for communication in high-noise mobile environments such as fire apparatus, rescue vehicles, ambulances, command and control vehicles, airline deicers and paint stripers.

Lowest Price Guaranteed!

If you find a better price elsewhere on this product we will Match that price and beat it by 10% of the difference. See Details.

Buy with Confidence!

Purchase today and you can return it in the original condition through Sunday, December 20, 2026!   See our return policy.

David Clark C38-21RD1 Radio Interface Cable Assembly

  • List Price:
  • Item #10446
  • PN: 18747G-48
Qty

David Clark C38-21RD1 Radio Interface Cable Assembly Overview:

The David Clark C38-21RD1 Radio Interface Cable Assembly is a turnkey cable for connecting Motorola XTL and APX series mobile radios to a Series 3800 Vehicle Intercom System. It runs between any Series 3800 Radio Interface Module and the radio or its control head, making the radio's receive and transmit functions part of the intercom.

One end has a military-style screw-on connector for the radio interface module. The other has a 26-pin trapezoidal XTL/APX connector plus two flying leads, so it can be installed at the transceiver or at a remote control head:

  • Transceiver installation: Plugs into the J2 connector on the back of the radio. The flying leads are not used; cut them flush and protect them with heat shrink tubing.
  • Control head installation: Plugs into the J100 connector on the back of the control head. The green and black flying leads connect to J200 pins 1 and 2, in parallel with the external speaker if one is installed. O5 and O9 control heads only.

David Clark C38-21RD1 features:

  • Motorola compatibility: XTL and APX series radios, and O5 and O9 control heads.
  • Receive audio: Set with the radio or control head volume control. For fixed-level receive audio, contact David Clark.
  • Connections: Talk, listen, PTT and ground.
  • Cable: 21 ft of 6-conductor, individually shielded, 26 AWG cable (0.220" outer diameter).
  • David Clark part number: 18747G-48

For other mobile radios, the universal C3821 Radio Interface Cord has stripped and tinned leads for custom wiring.

The Series 3800 Vehicle Intercom System is built for communication in high-noise mobile environments such as fire apparatus, rescue vehicles, ambulances, command and control vehicles, airline deicers and paint stripers.
