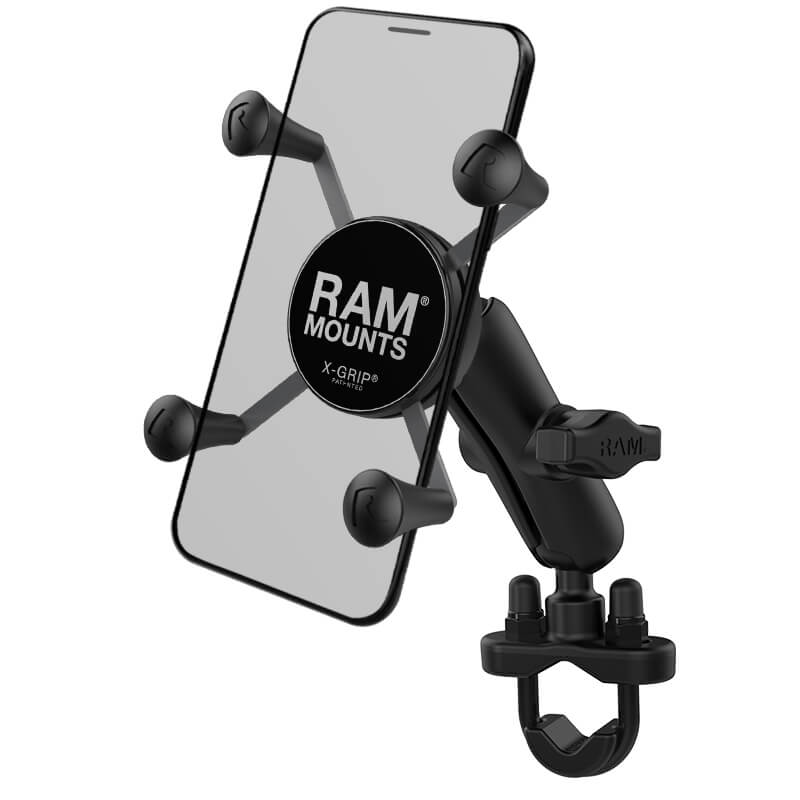

RAM X-Grip Phone Mount with Handlebar U-Bolt Base - Medium Overview:

The RAM X-Grip Phone Mount with Handlebar U-Bolt Base - Medium consists of a zinc coated u-bolt base, double socket arm and universal X-Grip cradle.

• Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
• Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length, B size RAM double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

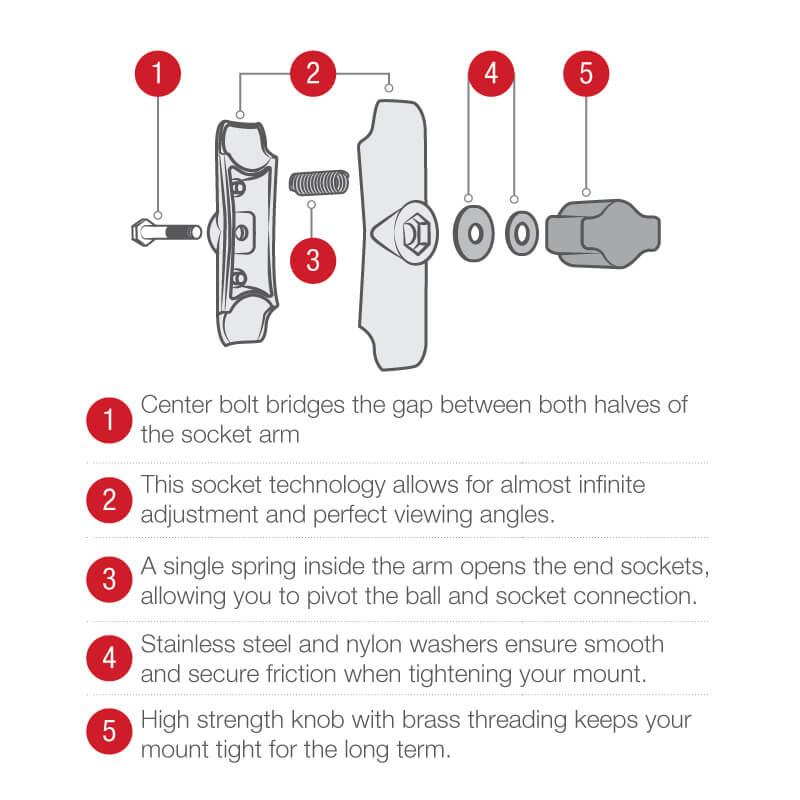

The RAM-B-149Z-UN7U consists of a zinc coated u-bolt base, double socket arm and universal X-Grip cradle. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone cradle evolved. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

RAM X-Grip Phone Mount with Handlebar U-Bolt Base - Medium Specs:

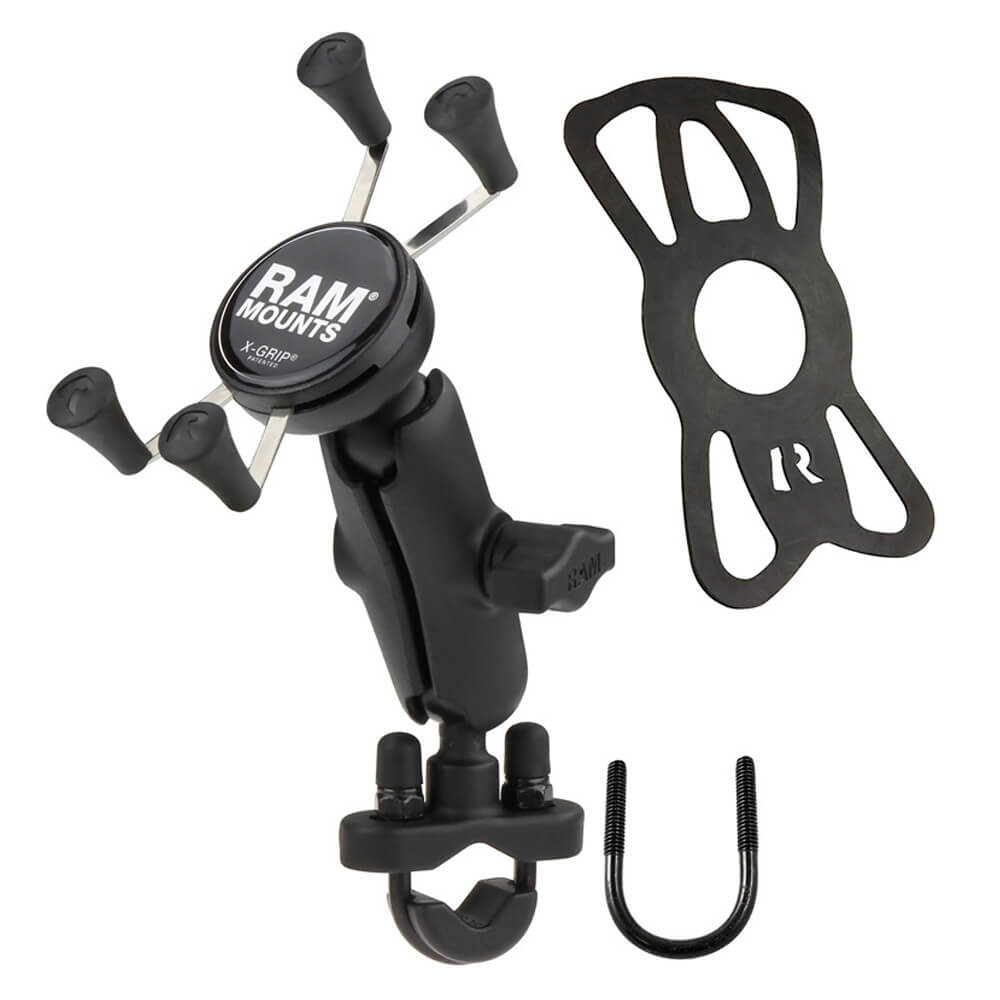

• Hardware Included: (1) Optional Tether|(1) Glue Tube for Rubber Caps|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
• Ball Size: B Size (1")
• Holder Dimensions: Width Range: 1.875" - 3.25"|Depth Range: .875" max
• Clamp Range: .5" - 1.25" diameter
• Socket To Socket Length: 3"

This kit includes these RAM products:

• RAM X-Grip Universal Phone Holder with Ball - B Size (RAM-HOL-UN7BU)
• RAM Double Socket Arm - B Size Medium (RAM-B-201U)
• RAM Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter - B Size (RAM-B-231ZU)

RAM Mounts Part Number: RAM-B-149Z-UN7U
