RAM Yoke Clamp Mount with Curved Plate for Pilatus PC-12NG Overview:

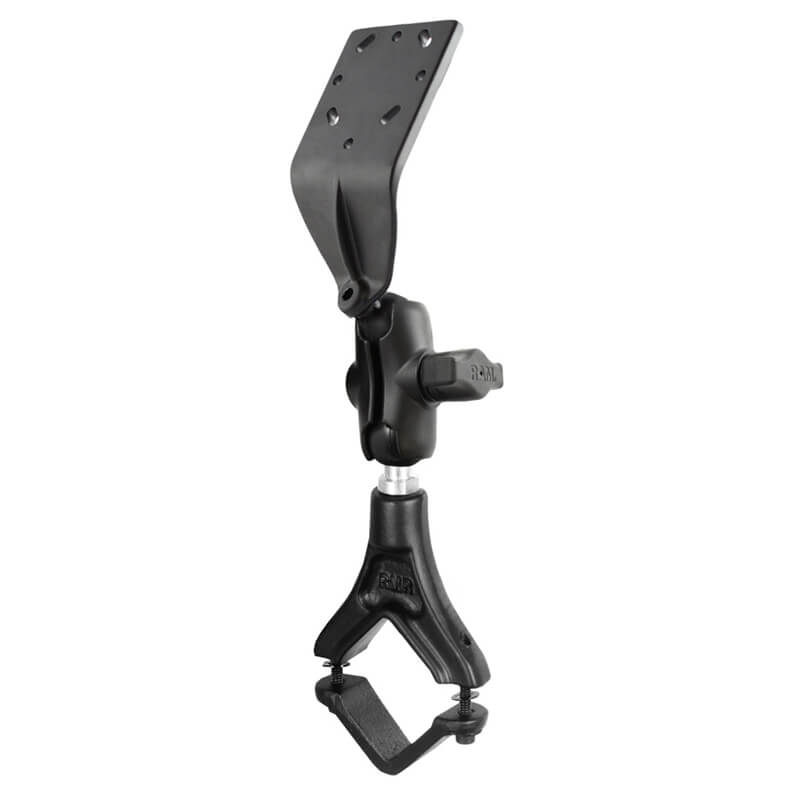

The RAM Yoke Clamp Mount with Curved Plate for Pilatus PC-12NG consists of a yoke clamp base, SHORT double socket arm and curved angle plate.

The RAM-B-380-A-125BU consists of a yoke clamp base, SHORT double socket arm and curved angle plate. The yoke clamp base is designed with the Pilatus PC-12NG in mind; however, if your aircraft yoke has an outer diameter within the compatible range, this product will fit your yoke. The yoke clamp base will accommodate an outer diameter range of 1.25" 1.625". The curved angle plate is 2.5" square with pre-drilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25" forward, at a 45 degree angle, from the center of the 1" ball and approximately 1.5" above the 1" ball (to the bottom of the connection section of the plate).

RAM Yoke Clamp Mount with Curved Plate for Pilatus PC-12NG Specs:

• Hardware Included: (2) #10-24 x 1" Socket Head Cap Screws|(2) #10 Stainless Steel Washers|(2) #10 Screw Retaining Rings|(1) 2" x 7.5" Rubber Adhesive Strip
• Hole Pattern: Various AMPS Hole Patterns|See Drawing
• Ball Size: B Size (1")
• Clamp Range: 1.4" - 1.625"
• Socket To Socket Length: 1.75"

RAM Mounts Part Number: RAM-B-380-A-125BU
