RAM Double Ball Yoke Clamp Mount with Diamond Plate - Medium Overview:

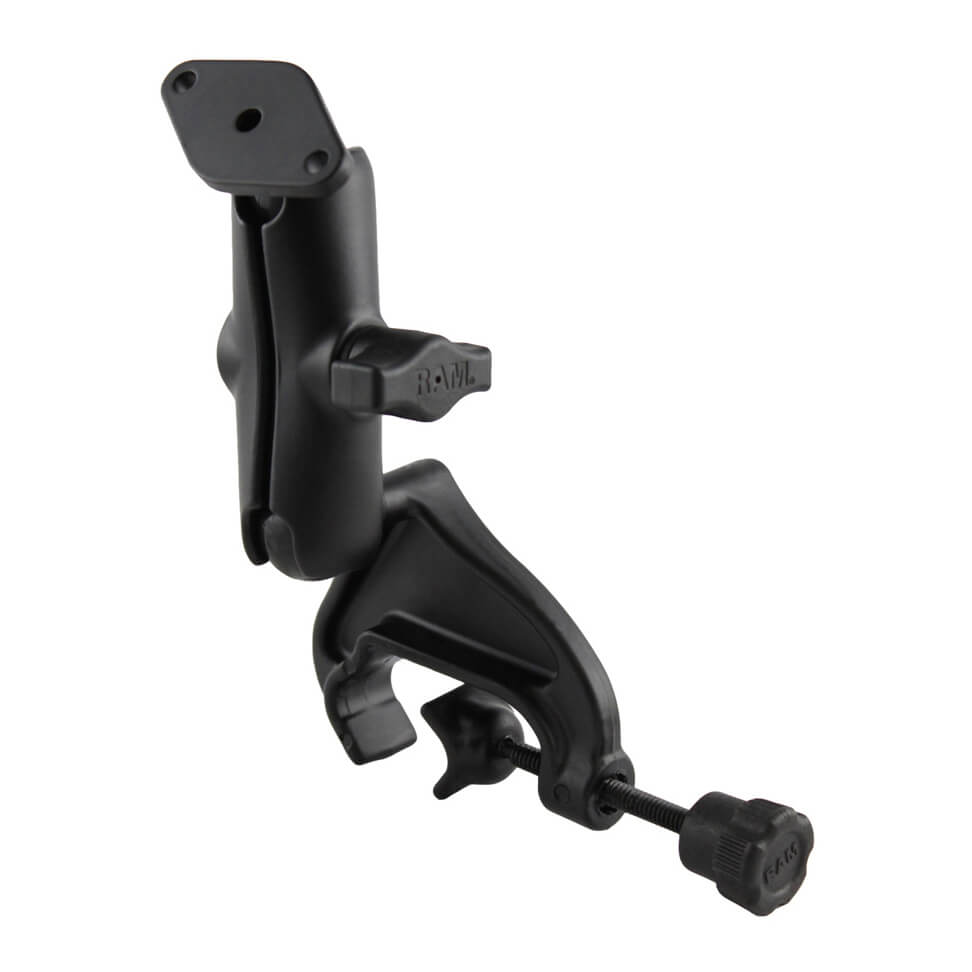

The RAM Double Ball Yoke Clamp Mount with Diamond Plate - Medium consists of a yoke clamp base, standard length double socket arm and 2.43" x 1.31" diamond base.

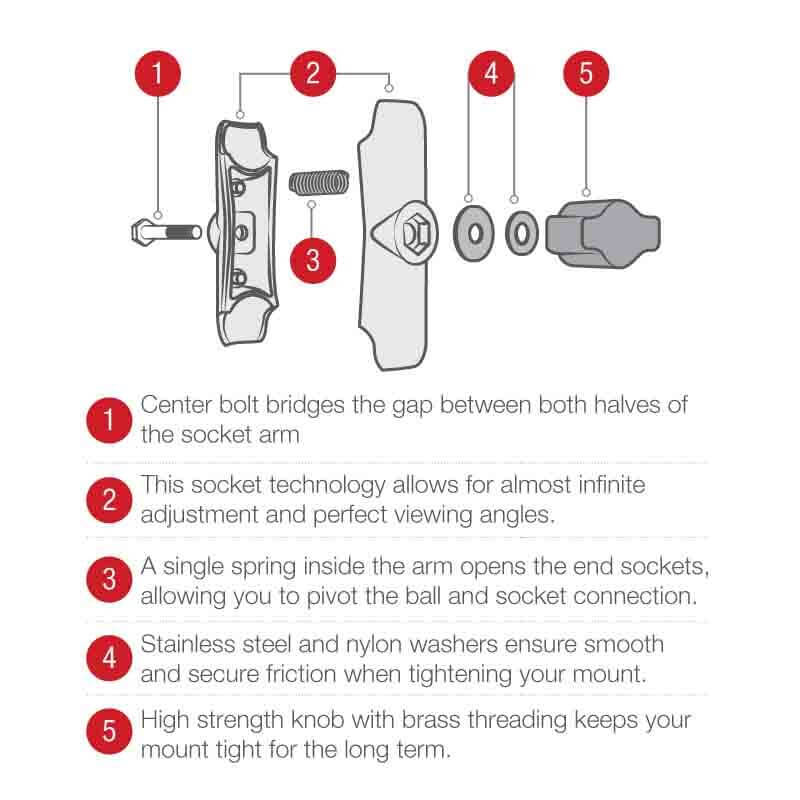

The RAM-B-121-238U consists of a yoke clamp base, standard length double socket arm and 2.43" x 1.31" diamond base. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The diamond base has two holes 1.912" from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.

RAM Double Ball Yoke Clamp Mount with Diamond Plate - Medium Specs:

• Hole Pattern: 2-Hole AMPS: 1.912"
• Ball Size: B Size (1")
• Plate Size: 2.43" x 1.31"
• Clamp Range: .625" - 1.25"
• Socket To Socket Length: 3"

This kit includes these RAM products:

• RAM Yoke Clamp Base with Ball (RAM-B-121BU)
• RAM Double Socket Arm - B Size Medium (RAM-B-201U)
• RAM Diamond Ball Base - B Size (RAM-B-238U)

RAM Mounts Part Number: RAM-B-121-238U
