uAvionix AV-20S Multi-Function Display - Certified

uAvionix
    • Item #13933
    • PN: UAX-90050-01
  • In Stock
  • Free Shipping!
  • Item #13933
Qty

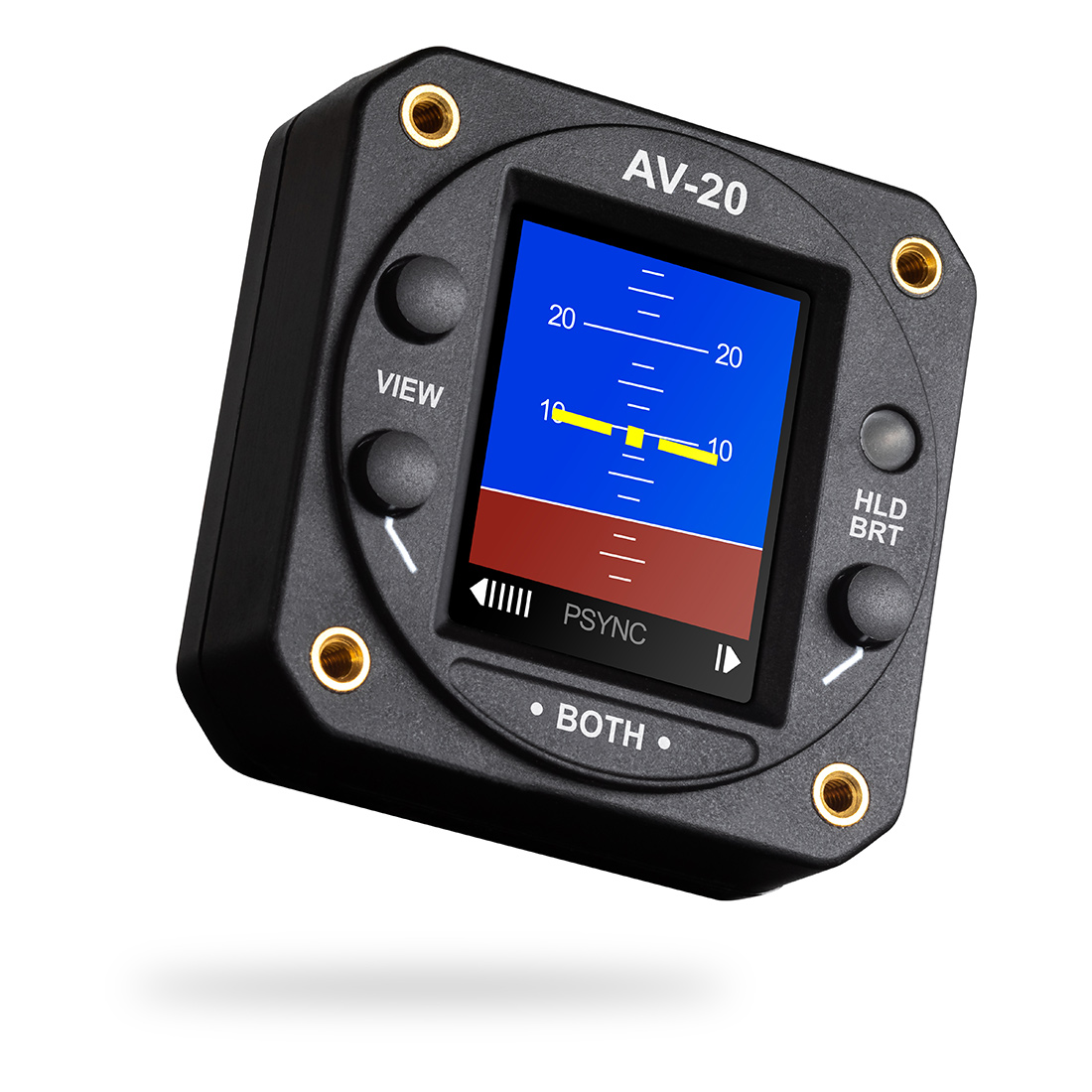

The uAvionix AV-20-S packs 12 functions into a 2-inch instrument and is FAA approved under the NORSEE (Non-Required Safety Enhancing Equipment) policy for Part 23 Class I and II aircraft. It's also an FAA approved clock for VFR and IFR aircraft, so it can replace your existing panel clock.

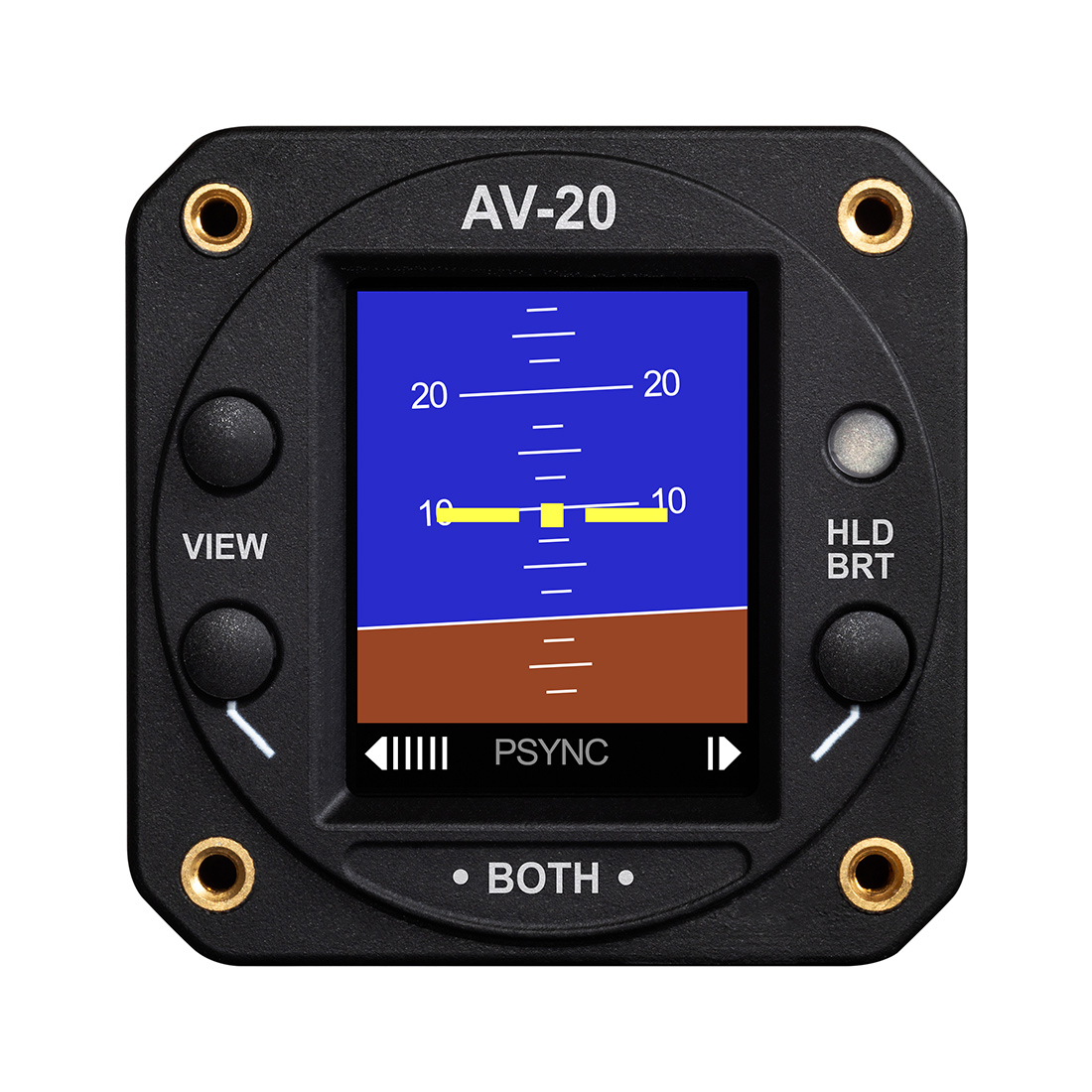

The AV-20-S fits a standard 2-1/4" instrument hole and mounts from behind, so there's no panel cutting. Its matte display is readable in direct sunlight and adjusts brightness automatically. Probeless angle of attack is calculated from pitch, flight path and G-loading, with visual and voice alerts as you approach a dangerous AoA.

Building an experimental? The AV-20-E adds transponder control for uAvionix tailBeaconX and echoESX.

uAvionix AV-20-S display functions:

  • Angle of attack (AoA) with voice alerting and peaks
  • G-meter with voice alerting and peaks
  • Attitude (roll and pitch)
  • Slip/skid indication
  • Clock (GMT and local)
  • Outside air temperature (C or F)
  • Bus voltage
  • Dual user timers (count up or down)
  • Engine run timer and flight timer
  • Density altitude
  • True airspeed (knots or mph)
  • Audio alerts for AoA, G and roll limits
  • 30 minutes of operation on the internal backup battery

AV-20-S specifications:

  • Mounting: standard 2-1/4" round instrument hole, mounts from behind the panel with (4) #6-32 screws
  • Dimensions without connector: 2.4" x 2.4" x 1.2"
  • Weight: 0.25 lb
  • Input voltage: +10 to +32 VDC nominal, +60 VDC maximum
  • Input power: 3 W nominal (0.25 A at 12 VDC), 6 W maximum (0.50 A at 12 VDC)
  • Required circuit breaker: 1 A
  • Battery operation: 30 minutes (standard 15 C environment)

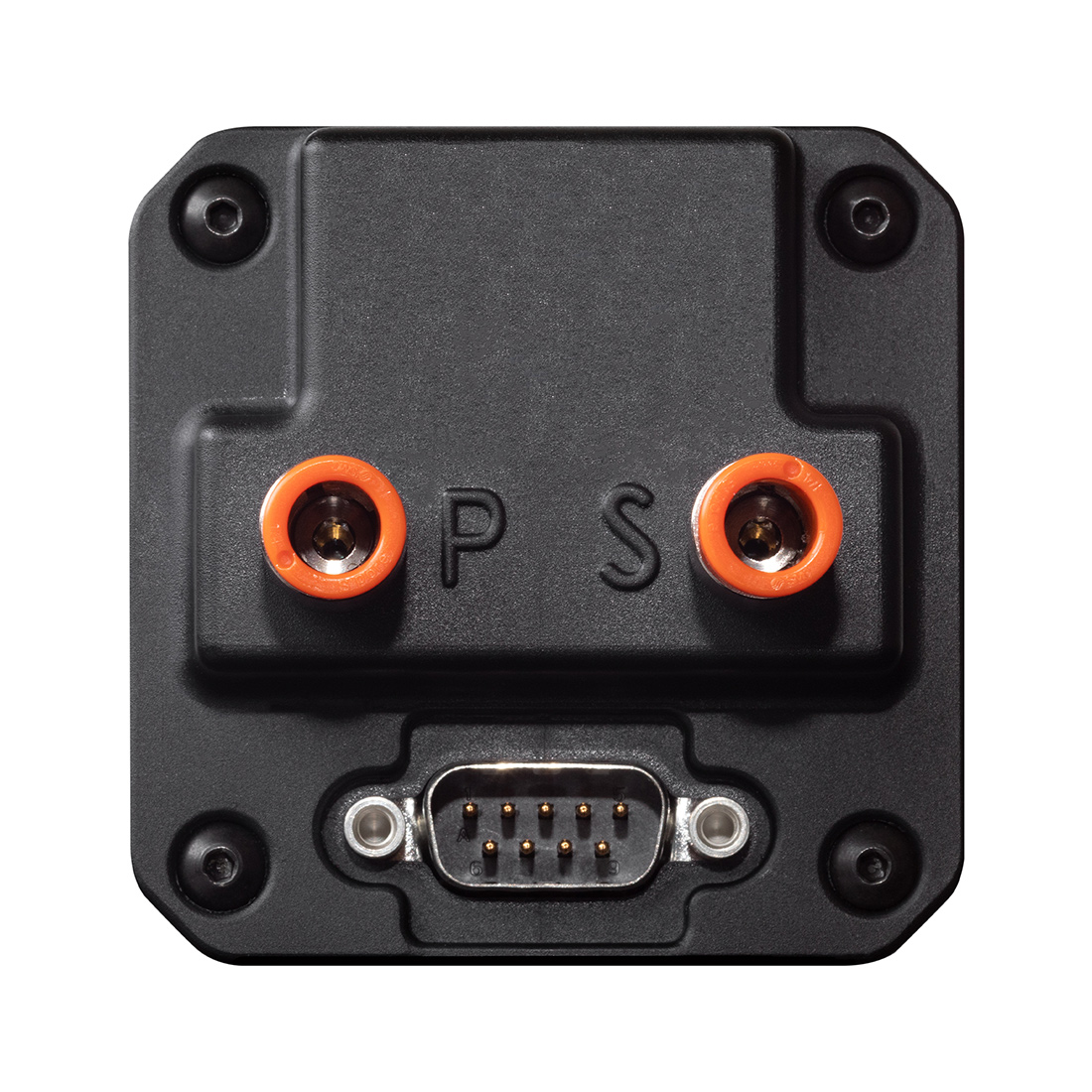

  • Electrical connector: 9-pin male D-sub

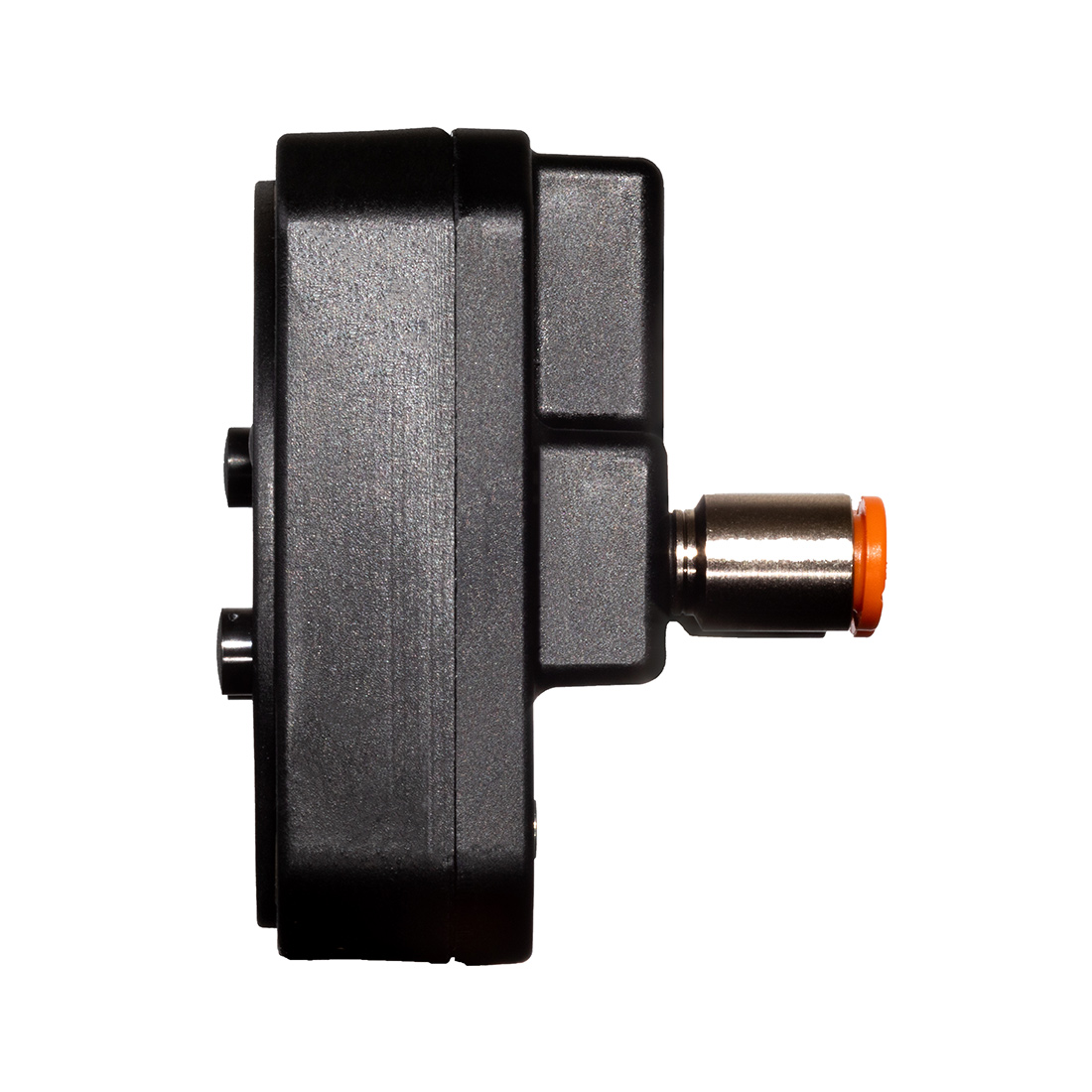

  • Pneumatic connectors: 1/4" OD quick connect
  • Case: high-impact ABS plastic
  • Display: 1.8" circular, 1000 cd/m2 typical brightness, 50,000 hour backlight life
  • Operating temperature: -20 to +55 C
  • Maximum altitude: 25,000 ft

An OAT probe is not included. The AV-20 works with the industry-standard Davtron C307PS analog OAT probe, sold separately. Without the probe connected, OAT, density altitude and true airspeed are not displayed.

What's included:

  • AV-20-S with internal backup battery
  • Installation kit with two 1/4" quick connect fittings, mounting screws, D-sub connector, backshell and pins
  • Certificate of Conformance

Documents (PDF):

Lowest Price Guaranteed!

If you find a better price elsewhere on this product we will Match that price and beat it by 10% of the difference. See Details.

Buy with Confidence!

Purchase today and you can return it in the original condition through Monday, January 11, 2027!   See our return policy.

uAvionix AV-20S Multi-Function Display - Certified

  • In Stock
  • Free Shipping!
  • Item #13933
  • PN: UAX-90050-01
Qty

uAvionix AV-20S Multi-Function Display - Certified Overview:

The uAvionix AV-20-S packs 12 functions into a 2-inch instrument and is FAA approved under the NORSEE (Non-Required Safety Enhancing Equipment) policy for Part 23 Class I and II aircraft. It's also an FAA approved clock for VFR and IFR aircraft, so it can replace your existing panel clock.

The AV-20-S fits a standard 2-1/4" instrument hole and mounts from behind, so there's no panel cutting. Its matte display is readable in direct sunlight and adjusts brightness automatically. Probeless angle of attack is calculated from pitch, flight path and G-loading, with visual and voice alerts as you approach a dangerous AoA.

Building an experimental? The AV-20-E adds transponder control for uAvionix tailBeaconX and echoESX.

uAvionix AV-20-S display functions:

  • Angle of attack (AoA) with voice alerting and peaks
  • G-meter with voice alerting and peaks
  • Attitude (roll and pitch)
  • Slip/skid indication
  • Clock (GMT and local)
  • Outside air temperature (C or F)
  • Bus voltage
  • Dual user timers (count up or down)
  • Engine run timer and flight timer
  • Density altitude
  • True airspeed (knots or mph)
  • Audio alerts for AoA, G and roll limits
  • 30 minutes of operation on the internal backup battery

AV-20-S specifications:

  • Mounting: standard 2-1/4" round instrument hole, mounts from behind the panel with (4) #6-32 screws
  • Dimensions without connector: 2.4" x 2.4" x 1.2"
  • Weight: 0.25 lb
  • Input voltage: +10 to +32 VDC nominal, +60 VDC maximum
  • Input power: 3 W nominal (0.25 A at 12 VDC), 6 W maximum (0.50 A at 12 VDC)
  • Required circuit breaker: 1 A
  • Battery operation: 30 minutes (standard 15 C environment)
  • Electrical connector: 9-pin male D-sub
  • Pneumatic connectors: 1/4" OD quick connect
  • Case: high-impact ABS plastic
  • Display: 1.8" circular, 1000 cd/m2 typical brightness, 50,000 hour backlight life
  • Operating temperature: -20 to +55 C
  • Maximum altitude: 25,000 ft

An OAT probe is not included. The AV-20 works with the industry-standard Davtron C307PS analog OAT probe, sold separately. Without the probe connected, OAT, density altitude and true airspeed are not displayed.

What's included:

  • AV-20-S with internal backup battery
  • Installation kit with two 1/4" quick connect fittings, mounting screws, D-sub connector, backshell and pins
  • Certificate of Conformance

Documents (PDF):



2 CUSTOMER REVIEWS

  • uAvionix AV-20S Multi-Function Display - Certified

    2 Reviews

  • Average Customer Review:

Filter

Select a row below to filter reviews by star rating.

Top Reviews
  • Verified Purchase

No operator manual furnished with product

  • By Ted the Ercoupe pilot from San Marcos TX USA on Saturday, May 1, 2021
  • Pros: Great features
  • Review: Great features.  Lacked operator manual.

  • Verified Purchase

  • By Michael from Lake Alfred FL USA on Tuesday, July 14, 2020
  • Pros:
  • Review: It has become my favorite piece of avionic equipment. I really enjoy the different functions that it performs. Very bright and clear display. It's a great backup for my steam gauge six pack! I am so impressed by it that I have an AV30 on pre purchase from you.

  • Verified Purchase

No operator manual furnished with product

  • By Ted the Ercoupe pilot from San Marcos TX USA on Saturday, May 1, 2021
  • Pros: Great features
  • Cons: No operator manual
  • Review: Great features.  Lacked operator manual.
  • Was this review helpful to you? Yes No 5 Other people found this review helpful.
  • Verified Purchase

  • By Michael from Lake Alfred FL USA on Tuesday, July 14, 2020
  • Review: It has become my favorite piece of avionic equipment. I really enjoy the different functions that it performs. Very bright and clear display. It's a great backup for my steam gauge six pack! I am so impressed by it that I have an AV30 on pre purchase from you.
  • Was this review helpful to you? Yes No 4 Other people found this review helpful.

1 QUESTIONS & ANSWERS

  • Previously Asked Questions

  • Tuesday, June 1, 2021

    Q: What is the Max +/- on the G meter

    A: The Large G-Meter Display Mode is scaled by both the user configured upper and lower G limits. Both positive and negative values are displayed on the same graph, making the visible indicator an "absolute" G limit indication.  It can be configured up to +/- 8G.
