RAM Universal X-Grip for 10 inch Tablets Mount System Overview:

Made in the USA, and backed by a lifetime warranty, RAM mounting products are some of the best in the industry! Available in three mounting options (Yoke, Suction Cup, or Glare Shield) these mounting systems allow you to create a custom and secure set up within the cockpit.

Perfect for almost any 10" tablet, the spring loaded RAM X-Grip III 10" Tablet Cradle expands and contracts, allowing for a perfect custom fit for most 10" tablets with or without sleeves, as well as some smaller tablets.

The X-Grip III cradle consists of a composite spring loaded holder, expandable grip arms and additional bottom support keeper. Designed into the mount is a 1" diameter patented rubber "B" ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you to move the suction cup X-Grip III mount to your optimum viewing position. Included are extra easy access grip knobs, located on the back of the holder for quick release of your tablet.  Oh and don't forget, the double ball and socket system allows for both portrait and landscape viewing!

Compatible Devices (most devices listed below with or without case/skin/sleeve are compatible):

• Apple iPad 1st to 10th Generation
• iPad 9.7 (2017 and 2018)
• iPad Air 1 through 5
• iPad Pro 9.7 (1st Gen)
• iPad Pro 10.5 (2nd Gen)
• iPad Pro 11"
• Amazon Fire HD 10
• Asus EEE Pad
• Asus Eee Pad Transformer
• HP TouchPad
• Lenovo LePad Slate
• LG G-Slate
• LG Optimus Pad
• Motorola XOOM
• Motorola XYBOARD 10.1
• Pandigital R90A200
• Samsung Galaxy Tab 8.9
• Samsung Galaxy Tab 10.1
• Samsung Galaxy Tab 2 10.1
• Samsung Galaxy Note 10.1
• Toshiba Thrive
• Most 10" Screen Tablets

It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Holder Dimensions:
Minimum Width = 6.25"
Maximum Width = 8.1"
Depth = 0.875"

Clamp Base Dimensions: Accommodates rails from 0.625" to 1.25" in diameter.

Material: High Strength Composite and Powder Coated Marine Grade Aluminum

Ball Size: 1" Rubber Ball "B" Size

Your kit will include everything needed to mount the 10" Tablet in one of these three configurations:

• Yoke Mount: Yoke clamp, 3" standard double socket arm, X-Grip III 10" Tablet Cradle
  The RAM yoke clamp mount is designed with a RAM 1" diameter patented rubber "B" ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the yoke clamp mount to your optimum viewing position.
  The yoke mount accommodates rails from 0.625" to 1.25" in diameter.

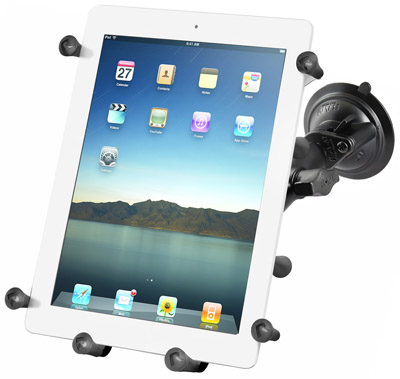

• Suction Mount: 3.25" twist lock suction cup, 3" standard double socket arm, X-Grip III 10" Tablet Cradle
  The RAM suction mount is designed with a RAM 1" diameter patented rubber "B" ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Simply attach the suction cup base to the windshield of your aircraft for an easy and safe way to view your tablet. High quality materials ensure your tablet is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your tablet.
• Glare Shield Mount: Glare Shield clamp, 3" standard double socket arm, X-Grip III 10" Tablet Cradle
  The RAM glare shield mount is designed with a RAM 1" diameter patented rubber "B" ball and socket system with adjustment points at the base and cradle. Simply locate the clamp on any clamping surface up to 1.12" thick and gently snug the nylon thumb screws. The double ball & socket system will provide perfect viewing angles to get the most from your tablet. The RAM glare shield clamp with double ball & socket system is far and away the most discrete and clean way to mount most any compact electronic device to the glare shield of your aircraft.
  The glare shield mount accommodates flat surfaces from a minimum of 4.4mm (0.17") to a maximum 28.0mm (1.12").
