RAM X-Grip Handlebar U-Bolt Mount for 7"-8" Tablets Overview:

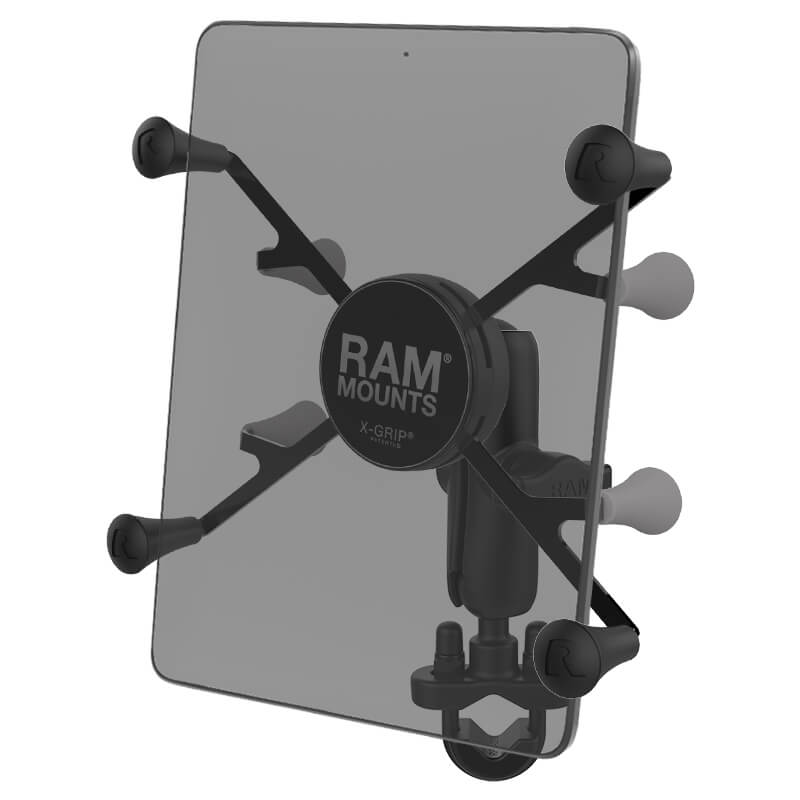

The RAM X-Grip Handlebar U-Bolt Mount for 7"-8" Tablets consists of a zinc coated u-bolt base, double socket arm and universal X-Grip clamping cradle for 7"-8" tablets.

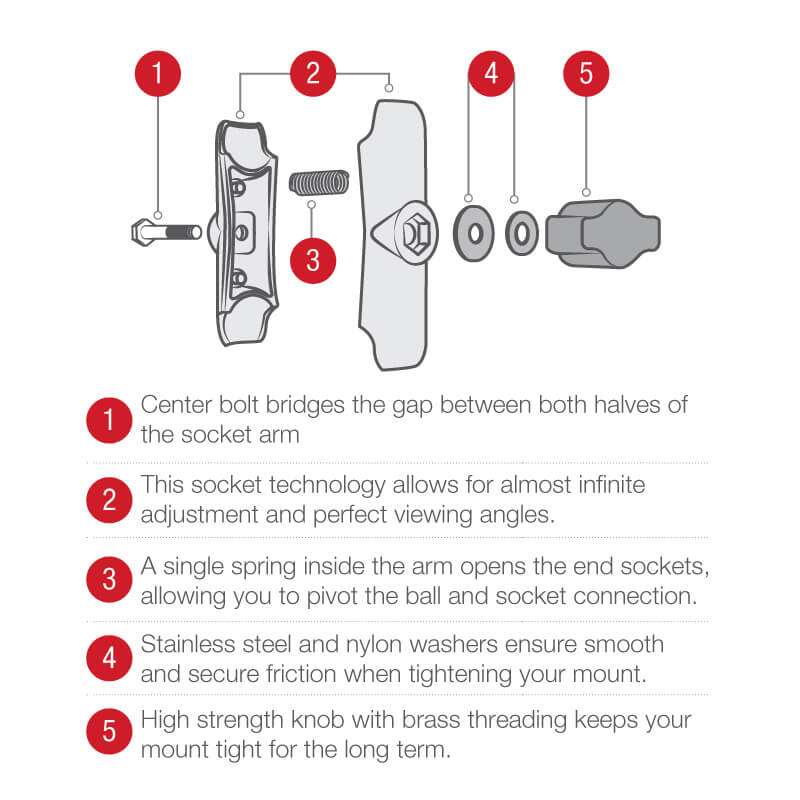

The RAM-B-149Z-UN8U consists of a zinc coated u-bolt base, double socket arm and universal X-Grip clamping cradle for 7"-8" tablets. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

RAM X-Grip Handlebar U-Bolt Mount for 7"-8" Tablets Specs:

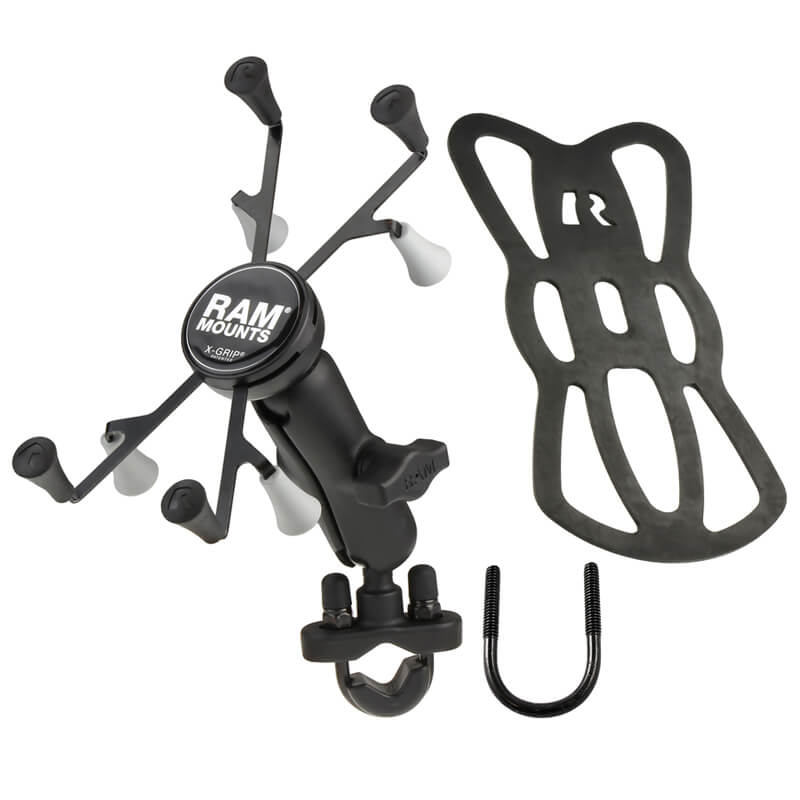

• Hardware Included: (1) Optional Tether|(1) Glue Tube for Rubber Caps|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
• Ball Size: B Size (1")
• Holder Dimensions: Width Range: 2.5" - 5.75"|Depth Range: .875" max
• Clamp Range: .5" - 1.25" diameter
• Socket To Socket Length: 3"

This kit includes these RAM products:

• RAM X-Grip Universal Holder for 7"-8" Tablets with Ball - B Size (RAM-HOL-UN8BU)
• RAM Double Socket Arm - B Size Medium (RAM-B-201U)
• RAM Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter - B Size (RAM-B-231ZU)

RAM Mounts Part Number: RAM-B-149Z-UN8U
