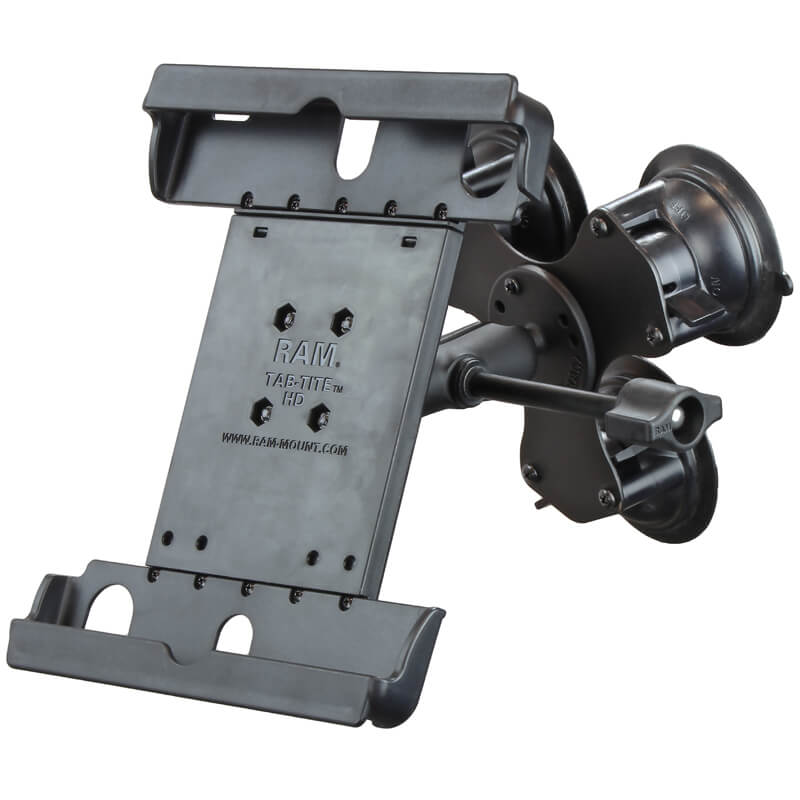

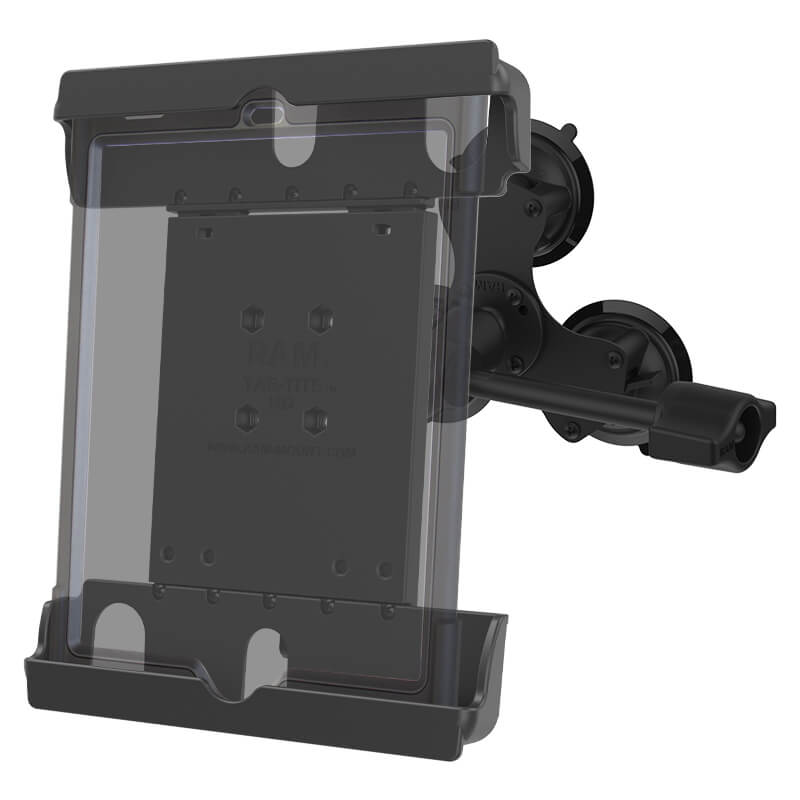

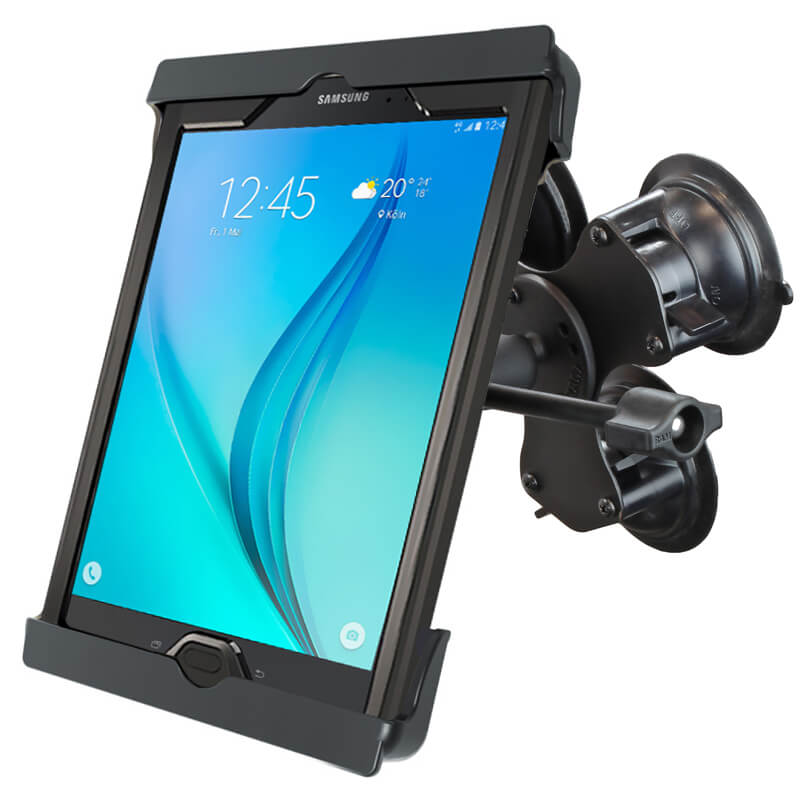

RAM Tab-Tite with RAM Twist-Lock Triple Suction for 9"-10.5" Tablets Overview:

The RAM Tab-Tite with RAM Twist-Lock Triple Suction for 9"-10.5" Tablets is a triple suction cup base for commercial aviation EFB iPad AIR 2.

• Spring-loaded holder secures 9" tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
• Includes RAM Twist-Lock triple suction cup base ideal for windshields and other nonporous surfaces
• Made of high-strength composites for durability and reliability in the most demanding environments
• Backed by a lifetime warranty*

The RAM-333-224-1-ALA1-TAB20U is a triple suction cup base for commercial aviation EFB iPad AIR 2. The triple suction cup base offers redundancy in the cockpit for a secure mount for the demanding environment of the modern flight deck. Designed to be used in either the Captain of the FO seat. This mount gives the operator the ability to adjust easily with the aviation designed double socket arm and the extended knob that is always in the sight of the operator.

RAM Tab-Tite with RAM Twist-Lock Triple Suction for 9"-10.5" Tablets Specs:

• Hardware Included: Assembly Hardware
• Ball Size: B Size (1")
• Holder Dimensions: Height Range: 9.5" - 12.125"|Width Range: 6.55" - 7.43"|Depth Range: .3" - .875"
• Suction Size: (3) 3.3" Diameter Bases, Total Width 7.95"
• Socket To Socket Length: 3"

This kit includes these RAM products:

• RAM Twist-Lock Triple Suction Cup Base (RAM-333-224-1U)
• RAM Round Plate with Ball - B Size (RAM-B-202U)
• RAM Double Socket Arm with Retention Knob - B Size Medium (RAM-B-201-ALA1-KRU)
• RAM Tab-Tite Holder for 9"-10.5" Tablets with Heavy Duty Cases (RAM-HOL-TAB20U)

RAM Mounts Part Number: RAM-333-224-1-ALA1-TAB20U
