RAM Glare Shield Clamp Mount with Diamond Plate Overview:

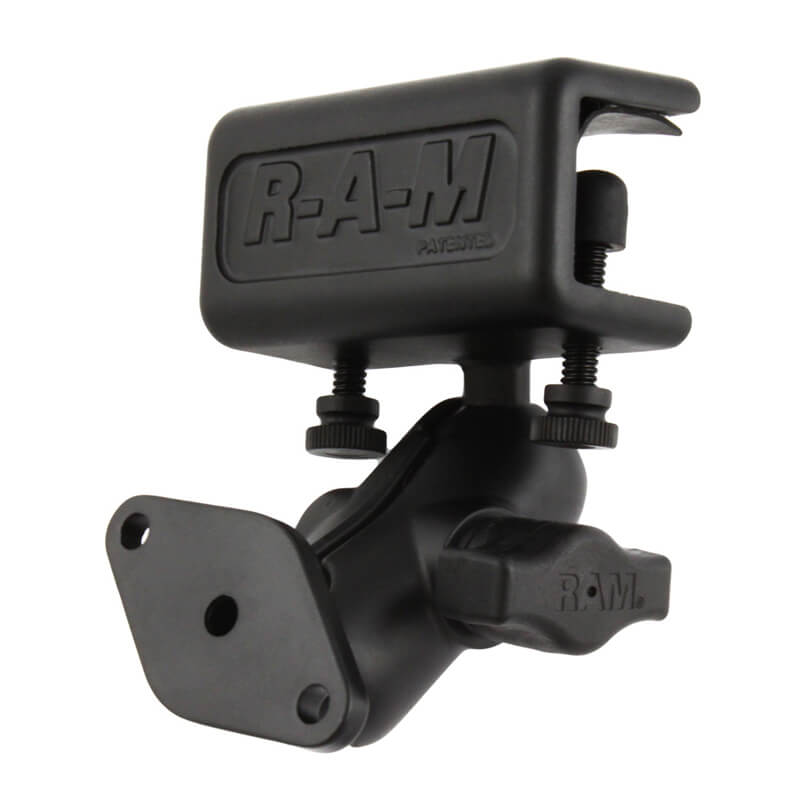

The RAM Glare Shield Clamp Mount with Diamond Plate consists of a glare shield clamp base, short double socket arm and diamond base adapter.

The RAM-B-177U consists of a glare shield clamp base, short double socket arm and diamond base adapter. The RAM-B-177U is designed to mount to the lip edge of a flat surface up to 5/8" thick. Popular mounting edges include a car side window edge lip or glare shield on an airplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diameter arm socket and connection plates to create the perfect mount for your application. The hole pattern found on the diamond base adapter will connect to most RAM cradles.

RAM Glare Shield Clamp Mount with Diamond Plate Specs:

• Hardware Included: (2) 1/4"-20 x 1.25" Composite Thumb Screws|(2) Rubber Caps|(1) 1.93" x 3.06" Rubber Adhesive Pad
• Hole Pattern: 2-Hole AMPS: 1.912"
• Ball Size: B Size (1")
• Clamp Range: .625" max
• Socket To Socket Length: 1.75"

This kit includes these RAM products:

• RAM Glare Shield Clamp Ball Base (RAM-B-259U)
• RAM Double Socket Arm - B Size Short (RAM-B-201U-A)
• RAM Diamond Ball Base - B Size (RAM-B-238U)

RAM Mounts Part Number: RAM-B-177U
