RAM Glare Shield Clamp Double Ball Mount with Round Plate Overview:

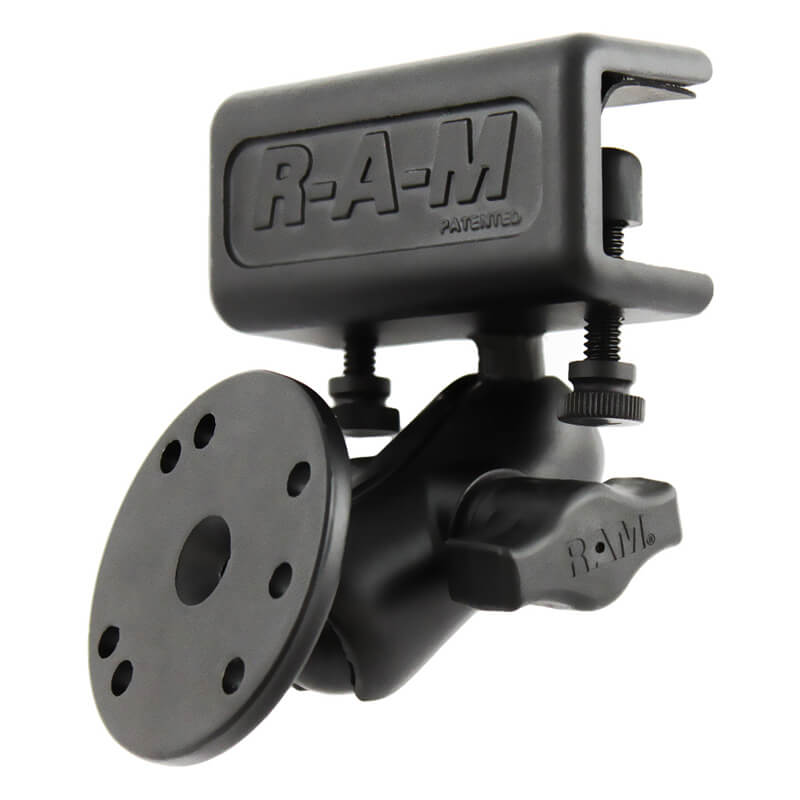

The RAM Glare Shield Clamp Double Ball Mount with Round Plate consists of a glare shield clamp base, short double socket arm and round base that contains the universal AMPs hole pattern.

The RAM-B-177-202U consists of a glare shield clamp base, short double socket arm and round base that contains the universal AMPs hole pattern. This mount is designed to mount to the lip edge of a flat surface up to 5/8" thick. Popular mounting edges include a car side window edge lip or glare shield on an airplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diameter arm socket and connection plates to create the perfect mount for your application. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

RAM Glare Shield Clamp Double Ball Mount with Round Plate Specs:

• Hardware Included: (2) 1/4"-20 x 1.25" Composite Thumb Screws|(2) Rubber Caps|(1) 1.93" x 3.06" Rubber Adhesive Pad
• Hole Pattern: 4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
• Ball Size: B Size (1")
• Clamp Range: .625" max
• Socket To Socket Length: 1.75"

RAM Mounts Part Number: RAM-B-177-202U
