Aerox Needle Valve Pendant Cannula Retrofit Kit with Aerox 400 Series Fitting Overview:

Aerox's Pendant Cannula Kit, with the adjusting needle valve integrated at the flowmeter for easy adjustment, for use with Portable Regulators.

Aerox 400 Series Oxygen type fitting. Fits Aerox Portable Oxygen Systems.

This Retro-Fit Kit consists of three parts.
1. Aerox OXYSAVER CANNULA — This comfortable device may be used in place of your mask up to 18.000 Ft. MSL. It is equipped with a conserving feature that extends your oxygen supply by up to four times.
2. Aerox FLOWMETER/INDICATOR — This combination device not only indicates oxygen flow, but also shows the rate of flow (in thousands of feet).

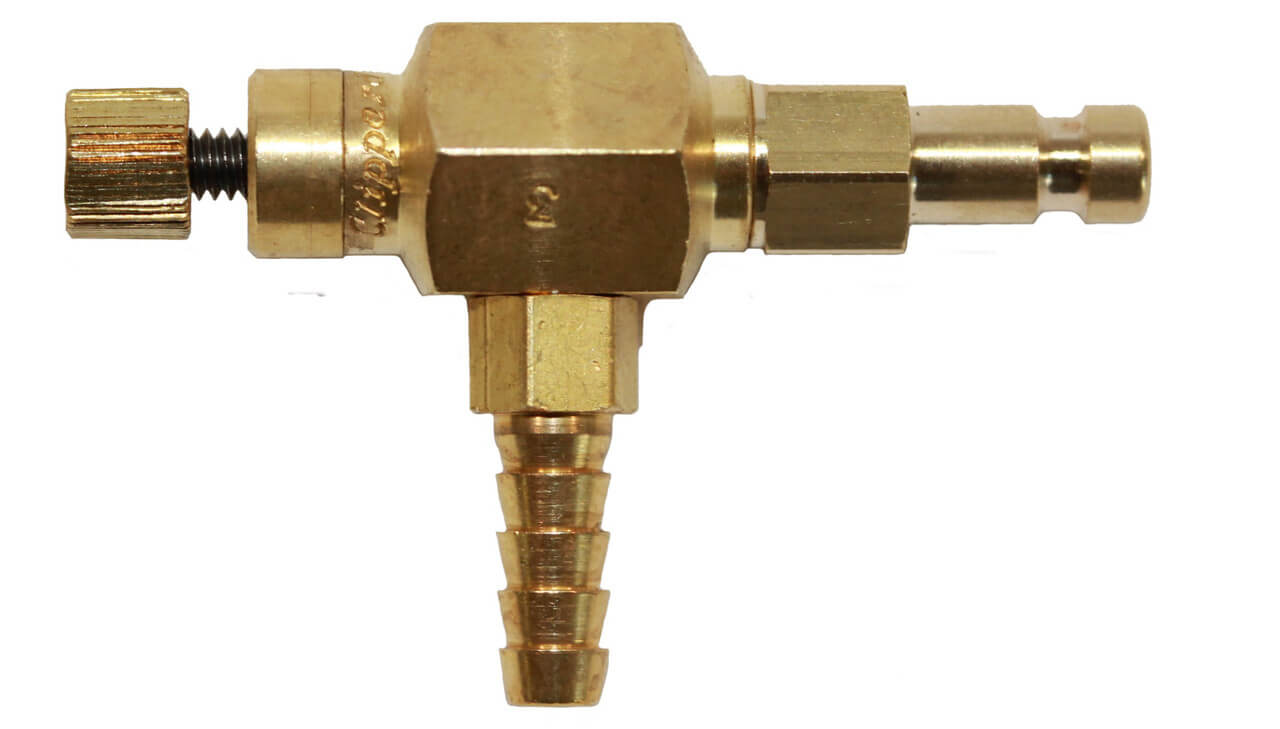

3. Aerox QUICK CONNECT/ADJUSTABLE FLOW NEEDLE VALVE — The Quick Connect fitting matches the outlet Of your system, and is attached to a thumb screw operated needle valve that allows precise flow control

ASSEMBLY
1) Insert the Flowmeter in the Oxysaver Cannula supply line. Be careful the out flow is nearest the Cannula (Top of Flowmeter).
2) Insert the infow barb (Bottom of Flowmeter) into the bushing of the supply line. The free end of the supply line is pushed onto the barb of the Quick Connect/Adjustable Flow Valve (may already be connected), which in turn goes to the oxygen source fitting of your system
3) The supply line may be trimmed between the and the Quick Connect if desired.
4) Make that the tubing is affixed to each barb and that the Flowmeter is property oriented.

Part Number: 4110-1096-4
