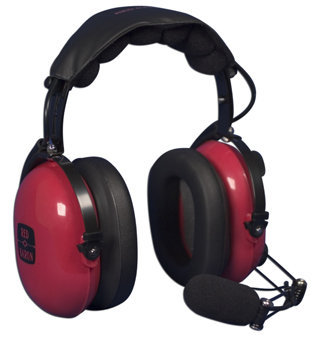

Whatever your destination, you can now enjoy your flying experience even more with a SoftComm C-40-10 Red Baron headset. This lightweight, rugged model has been carefully engineered for clarity, performance and reliability.

• Soft Foam Ear Seals, Mic Muff and Cloth Ear Seal Covers included
• Noise-Canceling, High Quality M-55 Electret Microphone
• Contoured 6 Pillow, Soft Foam Vinyl Head pad
• C 40-10 Head Weight, 12.5 oz.
• Six-Way Adjustable Mic-Boom
• Three-Year Warranty
• New technology and material for greater noise control.
• New High-level of audio performance.
• Built-in adjustment points for personal fitting and "no squeeze" comfort.
• New contoured foam head pad that eliminates "hot spots".
• Convenient volume controls.
• Six-way positive position mic-boom.
• 60" long reinforced flexible cables.
• High strength gold plated microphone and headphone plugs.

Constructed from new durable aerospace material, these headsets offer a real breakthrough in comfort and noise attenuation. For example, the new adjustable six pillow, soft foam head pads are designed to conform to head contours and eliminate "hot spots" on extra long flights.

The Super Soft Foam filled ear seals are made to surround the ears with quiet comfort. This blocks noise interference and provides the optimum comfort in a "no-squeeze" fit for hours of use. With a Noise Reduction Rating of -23dB, a quiet flight is assured. The Red Baron has a single volume control. An improved solid state Electret M-55 Condenser Microphone offers the finest in audio clarity and noise-canceling properties. Likewise, these noise canceling microphones are capable of rejecting most outside noise and, at the same time, provide clear, crisp voice transmission. The six-way adjustable "friction boom" allows for precision placement of the microphone, and can be positioned on either side of the mouth.

The long, heavy duty cable assemblies are made to withstand strains up to 95 pounds and retain their flexibility from -40° to +120°F. Attached to the cables are gold plated plugs which are designed to eliminate connector static. SoftComm's "Pride-of-Workmanship" and "Made in the U.S.A." plus a three-year warranty make this headset an excellent value.

SPECIFICATIONS:

HEADPHONES / SPEAKERS:
40mm in Diameter 90 micron thick Mylar pistons.
Frequency Response: 0.1-12.5Khz.
Sensitivity, re: .0002 dynes/cm2, @ 1mW, @ 1KHz: >75 dB
Impedance Monaural, 150 ohms
Impedance Stereo, 300 ohms
Maximum output: 115dB.@ 1cm.
Volume control deviation: 15 dB
Stereo channel separation: >80 dB

MICROPHONE:
Noise canceling Electret condenser with a Low output impedance line driver.
Frequency Response: 100Hz-10kHz
Microphone output: @1Kz 9 VDC, 600 ohms Load, re: 1v/uBar: -51dB
Output impedance: 100 ohms, Min., DC
Noise rejection ratio: 10-1, to 1Kz
Front to back noise ratio: 1X 10-3 to 10dB
DC supply voltage: 5-16 volts 2.5ma

MECHANICAL:
EPA NRR rating, tested: -23dB
Cord length: 66 inches
Head Weight:
C-40-10 = 12.5 ounces
C-40-20 = 13.3 ounces
Normal head squeeze pressure: 1.7 ounces

ENVIRONMENTAL:
Operating temp range: From 0°C to +80°C
Rust resistant CRES mic boom, stirrups and headband
PJ-068, gold plated microphone connector
PJ-055B, gold plated headphone connector
Designed to meet requirements of TSO-C57a




Our Price:  $109.95
