Vertex VXA-710 "Spirit" NAV-COM Transceiver
- 15 customer reviews.

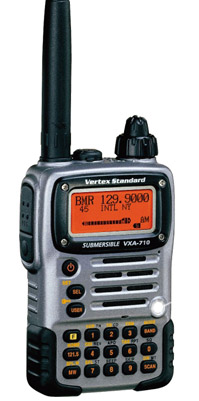

Click for a larger/zoom image

Vertex VXA-710

The multiple capabilities of the VXA-710 Spirit yield unmatched operating and monitoring opportunities for the owner on the go! Besides full voice transmit and receive operation on the Air Band, the VXA-710 Spirit also provides extensive VOR and CDI Navigation tools, along with convenient reception of the FM Broadcast band during down time. And you get the additional monitoring excitement afforded by receiver coverage of the Business Radio Service (BRS) band, a Vertex exclusive!

Multi Band / Multi Mode Operation

  • Air Band (108 MHz - 137 MHz) including NAV (108 MHz - 118 MHz)
  • AM 5 W P.E.P. (1.5 W Carrier)
  • Wide-Band FM Broadcast Receive 88 MHz -108 MHz
  • US BRS Band Reception with CTCSS/DCS Decoder
  • NOAA Weather Channel Receive with NOAA Severe
  • Weather Alert (U.S.A. Only)

True Heavy Duty Construction

  • Rugged Magnesium Die-Cast Construction
  • IPX7 Submersible (3 ft. 30 minutes)

Ultimate Air-Band Features

  • Long-Life Lithium-Ion Battery included
  • RX Battery Saver Mode
  • 160 Memories with Pre-programmed BOOK Memories
  • Multi-Color Strobe LED for Status Indication and Emergency Light in Dark
  • VOR Navigation Display
  • Back-lit Keypad and Display with Dimmer
  • One-Touch Emergency Frequency Access (121.5 MHz)
  • Rugged Magnesium Die-Cast Construction
  • Rechargeable 1300 MAH Li-Ion Battery offers twice the battery life of any airband receiver available today
  • Multi-color Strobe LED

160 Memory Channels (Incl. Pre-programmed "Book" Memories)
The extensive Memory system of the VXA-710 includes 70 "Main" memories, plus ninety preprogrammed "Book" memories, for quick and easy recall of often-used frequencies. The memories may be labeled with a title, for quick recognition.

Submersible (JIS-7)
The VXA-710's case, speaker enclosure, and controls are carefully sealed against water ingress, allowing the transceiver to be specified for protection against water ingress per IPX7 specifications (immersion to 3 feet/1 m for 30 minutes). So you need not fear using your VXA-710 during severe weather.

Rugged Magnesium Die-Cast Construction
The unmatched ruggedness of the VXA-710 is coupled with ultra-light weight, thanks to the die-cast magnesium case and chassis construction. Rubber bumpers on the bottom corners of the case protect it against damage from every-day bumps and scrapes.

Supplied Rechargeable Lithium-Ion Battery
The VXA-710 is supplied with a super-long-life 7.4 V, 1300 mAh Lithium-Ion Battery Pack (FNB-80LI), providing many hours of operation and reliable charging without the "memory" effects that can plague other battery types. With the optional CD-15A Charging Stand and NC-72B/C AC Adapter, the FNB-80LI may be charged in as little as 2.5 hours, so you'll quickly be ready for more operating action! And the optional FBA-23 Alkaline Battery Case will accept two "AA" batteries (not supplied) for low power emergency operation. The VXA-710's EXT DC jack will also accept 12 Volts from the NC-72B/C directly (RX only), or from an external power supply.

Receive Battery Saver
This feature helps maximize battery life by deenergizing the receiver section during periods of no activity, waking the receiver up at user-selected intervals to sample for channel activity. If no activity is detected, the Spirit goes back into its "sleep" mode. Current consumption is significantly reduced, thereby maximizing battery life. This feature is only found on Vertex Standard Airband Transceivers.

Multi-Color Strobe LED Status Indicator
Among the more innovative features introduced in the VXA-710 is the full-color Strobe LED, which provides indication of a number of transceiver status items using different colors. Different colors may be selected for each of the above conditions, and a total of 256 color shades are available, for customizing the colors just the way you like them.

Dot Matrix Display
No Airband hand-held transceiver has a display that even compares to the VXA-710's 132 x 64 dot matrix display. Providing clear, easy-to-read indication of frequency and Navigation data alike, the VXA-710's display includes an unparalleled array of graphical and pictorial tools that make operation a breeze.

NOAA WEATHER CHANNELS (U.S.A. Only)
The Spirit can receive all 10 NOAA weather broadcast frequencies. The Automatic Active Weather Channel Locator (a Vertex Standard exclusive) automatically scans for active NOAA weather stations in your area when WX band is selected.

NOAA "Severe Weather" Alert (U.S.A. Only)
The VXA-710 includes a special feature that sounds an alarm when the special "Severe Weather" alert tone is received from a Weather Broadcast station. This warns you of potentially life-threatening flying conditions.

One Touch Emergency Frequency Access
For lightning-fast access to the 121.5 MHz Emergency Frequency, a dedicated key on the front panel assures you of no delays in summoning help in an emergency.

Backlit Keypad and Display with Dimmer
The front panel's keypad and LCD are illuminated in Vertex Standard's renowned Omni-Glow(TM) amber hue, for excellent visibility and minimal impact on your night vision. The Omni-Glow(TM) display/key illumination may be configured in a number of battery-saving ways. Both Brightness and Contrast are adjustable. You can set the illumination to appear continuously, or only for a few seconds after a key is pressed. You can even turn the "Busy" Strobe off, for additional battery conservation.

PC Programmable
The channel configurations can be easily re-programmed in minutes using the optional PC Programming cable (CT-29+CT-97), software (CE56) and your PC. As your operating needs change, you can quickly reprogram your Spirit with the important frequency data you need.

Comes supplies with:

  • 1300 MAH Li-Ion Battery
  • Wall Charger
  • Headset adapter
  • Antenna
  • Belt Clip



SPECIFICATIONS

GENERAL
Frequency Range: TX 118.000 - 136.975 MHz (COM Band),
RX 88.000 - 108.000MHz (FM BC Band),
108.000 - 117.975 MHz (NAV Band),
118.000 - 136.975 MHz (COM Band),
151.5125 - 158.400MHz (BRS Channels),
Weather Channel (WX-01 - WX-10)
Channel Spacing: 5/10/12.5/15/20/25/50/100 kHz
Emission Type: TX: AM & FM,
RX: AM & FM
Supply Voltage: 4.5 - 15.0 VDC
Current Consumption (approx.): 250 µA (Power off),
35 mA (Battery saver on, save ratio 1:5),
60 mA (Squelch on), 180 mA (Receive).
1.7 A/950 mA/650 mA/400 mA
(Transmit FM: 5W/2.5W/1W/0.3W @ 7.4V)
800 mA (Transmit AM: 1.5W Carrier @ 7.4V)
400 mA (Transmit AM: 0.3W Carrier @ 4.5V)
Temperature Range: +14° F to +140° F (-10° C to +60° C)
Case Size (W x H x D): 2.36' x 3.78' x 1.12' (60 x 96 x 28.5 mm) w/FNB-80LI
Weight (approx.): 9.9 oz. (280 grams) with FNB-80LI, antenna

RECEIVER
Circuit Type: Double-conversion Superheterodyne
IFs: 35.4 MHz & 450 kHz ( AM / NFM ),
45.65 MHz & 10.7MHz ( WFM )
Sensitivity: 88-108 MHz: < 2 µV
(for 12 dB SINAD with 1 kHz tone @ 22.5 kHz deviation)
108 MHz-136.975 MHz: < 1 µV
(for 6 dB S/N with 1 kHz tone @ 30 % modulation)
144-148 MHz: < 0.32 µV
(for 12 dB S/N with 1 kHz tone @ 3.5 kHz deviation)
WX-01 - WX-10: < 0.4 µV
(for 12 dB S/N with 1 kHz tone @ 3.5 kHz deviation)
Selectivity: AM/NFM: < 8 kHz/—6 dB,
WFM: < 200 kHz/—6 dB
Adjacent Ch. Selectivity: AM/NFM: > 25 kHz/—60 dB,
WFM: > 300 kHz/—60 dB
AF Output: 0.4W @ 8 Ohms, 10 % THD

TRANSMITTER
Power Output: 118 MHz-136.975 MHz:
AM: 5.0 W (PEP),
1.5 W (Carrier Power) @ 7.4 V
FM: 5.0 W @ 7.4 V, AM: 4.0 W (PEP),
1.3 W (Carrier Power) @ 7.4 V
Frequency Stability: Better than -10 ppm
[+14° F to +140° F (—10° C to +60° C)]
Modulation System: AM: Low Level Modulation,
FM: variable reactance
Maximum deviation: +-5 kHz
Spurious Emission: > 60 dB below carrier
Int. Microphone Type: Condenser
Ext. Mic. Impedance: 150 Ohms



List Price: $495.00
Our Price:  $299.00

Add Vertex VXA-710

Other Helpful Documents:

Related Shopping Areas:
TransceiversNAV-COM Transceivers
TransceiversVertex Aviation Transceivers

More Items Labeled:  vxa-710

Lowest Price Guaranteed: If you find a better price elsewhere on this product we will match that price and beat it by 10% of the difference.

Buy With Confidence!  Purchase today and you can return it in the original condition through Monday, August 03, 2009!  Our return policy.

Have a question about Vertex VXA-710 "Spirit" NAV-COM Transceiver?  Ask your question and see previous Q & A about this product.

Customers who bought this were also interested in:

ASA CX-2 Pathfinder Flight Computer
ASA CX-2 Pathfinder Flight Computer

$74.50
Vertex Standard 12 V Cigarette Lighter Adaptor
Vertex Standard 12 V Cigarette Lighter Adaptor

$26.00
Vertex VXA-700 / VXA-710 Alkaline Case
Vertex VXA-700 / VXA-710 Alkaline Case

$37.00
Vertex VXA-700/710 Desktop Rapid Charger
Vertex VXA-700/710 Desktop Rapid Charger

$39.00
ASA Flight Timer
ASA Flight Timer

$44.95
LightSPEED Zulu Headset
LightSPEED Zulu Headset

$850.00



Customer Reviews For Vertex VXA-710 "Spirit" NAV-COM Transceiver:
Write a review
Friday, March 13, 2009
Great service
by Bob from MD USA

Pros: Rugged.
Cons: Menu system is not intuitive, it's a long learning curve.
Review: This product has a lot of bells and whistles, however the one feature in its predecessor (VXA700 has DTMF from the keypad) that I needed was canned for the new feature set. It's still a great little radio even without a readily accessible squelch control.

Wednesday, December 31, 2008
by Richard from MIAMI, FL
Review: This radio is great. Battery life is better than I expected especially in receive only mode. The construction is rugged and I like the fact that it is advertised as water proof at least for awhile. Because there are so many imbedded features the radio is not intuitive at first. Out of the box one can easily dial in a frequency. But doing much else requires reference to the manual. After awhile features that you use regularly, become more intuitive. I have had it for a month and have not yet explored its navigation capabilities. After working with the navigation features, manual in hand, I am sure it will become easier. The belt clip feature holds nicely. When clip and radio are off the belt the belt clip detaches easily and can be misplaced. I would order an extra belt clip going in. The size and weight of the unit are a nice feature. I rated it four instead of five stars due to the complexitiy of so many features with so few keys. Keys have to do double and triple duty.

Wednesday, October 08, 2008
by Peter from Hungary
Review: It is easy to use,after reading user guide, really worth to buy. Good battery lifetime, good transmitter performance.

Tuesday, July 29, 2008
by Karl-Axel from Sweden
Pros: the small size
Cons: Since I already have a cable for connecting to a computer I just need the software. However, MyPilotStore only wants to sell me the package with hardware and software :-(
Review: Very happy with this product! It took about a week from order to shipping. After shipping, the delivery was ligtning fast to Sweden :-). The possibility to follow the shipment was also nice. The VXA-710 seems to be good for a private pilot's needs. Extremely small and quite long battery time. Easy to use, with a lot of extra functions to use if you like. If you just want to use basic functions, the unit seems easy enough to handle. The sound in the tiny speaker is not very impressive but when connecting the headset the sound improves by a factor of ten! Inside a house I get very high noise interference but outside the reception is ok. As a backup transceiever the VXA-710 seems perfect. It also works well if you want to monitor radio traffic while your airplane is shut of and you do not want tp drain the airplane's power.

Wednesday, May 14, 2008
Defective unit or design flaw? And poor customer service
by Lee from Texas

Pros: Compact size
Cons: Can't lock frequency, poor customer service
Review: The manual implies that you can lock the frequency, however, it doesn't seem to work. I thought I might have gotten a defective unit so I called Vertex. They said there is no way to lock the frequency setting. I asked if they were sure and the guy said yes, he was certain. If that is true, then it seems like a huge design flaw. I took the radio to the airfield on Saturday and anytime something bumps the dial the frequency changes. This is especially problematic if you try to wear it on your belt with the clip. A pilot who had the older model tried it too and had the same problem. I guess I'm going for the ICOM instead. Oh yeah, and when I called Vertex to ask about it, the guy was extremely condescending and rude. I realize I'm just one person, but $400 is not a small amount to dish out on something that doesn't work. They should treat customers with a little more care. I hope others have better luck. :-)
[MyPilotStore Note:  We apologize for the problems that you had getting this feature to work.  The instructions for locking the dial can be found on page 52 of the Owner's Manual.]

Wednesday, April 02, 2008
A Good Transceiver
by Joel from Los Angeles CA USA

Pros: Design is great. Ease of use is outstanding. Features are in alignment with expectations.
Cons: Ground reception could be better. Buttons could be easier to press.
Review: I find that the transceiver works well, however, it could use a "boost" in its reception. If there are plans to use this for ATIS on the ground, make sure you're quite close to the airport; anything outside of a mile is sketchy at best.

Saturday, March 15, 2008
by mike from fort worth ,texas
Review: I would buy this product again and again.

Thursday, December 20, 2007
Judge this product by its cover.
by Lohrasp Suraliwala from Fresno CA USA

Pros: Its size and functions. works everywhere
Cons: can't think of any.
Review: I bought this product after getting reviews from different sites. I must say this product is worth every penny. I use it everyday but have not used all its functions but i am sure its great. Must buy for all aviators.

Friday, December 14, 2007
Compact, intuitive, quality unit
by John from Buena Park, CA USA

Pros: size, features, intuitive/easy controls
Cons: price
Review: This is my first transceiver, so I didn't want to skimp on a few dollars and not get all the bells/whistles I might need. I like the unit for its size and features. It fits in my flight bag with it's antenna on, which is nice. I haven't used all of the features yet, nor have I read the fairly thorough instruction book, but I'm able to tune comms and nav, and even FM radio, without any problem. Straight forward, clearly labeled buttons make it easy, and logical menus are nice. Reception seems good, too. So far so good. I'll try using it in the air soon.

The belt clip and headset adaptors are also nice pluses to this unit.

Tuesday, November 20, 2007
Big features, small package.
by Richard from College Point NY USA

Pros: Small size. Quality construction.
Cons: Small buttons. Too many steps to access certain functions.
Review: Amazing amount of features in such a small unit. Very durable construction. Battery life is good, however dead battery takes several hours to charge.

Monday, November 19, 2007
Many features, nice compact size
by Michael from Hanford CA USA

Pros: size, functions, battery
Cons: cost, FM radio, ease of use
Review: Works well on the ground within 3 miles, FM radio is marginal at best. Nice battery life, great size, a little steep learning curve.

Wednesday, September 26, 2007
No problems so far
by A Customer from Sugar Land TX USA

Review: No issues yet. There is a learning curve however since it has several features com, nav, wx etc.

Tuesday, May 15, 2007
Great radio but !
by Glenn Gambino from Ponchatoula,la.

Pros: love the VOR ind. small compack easy to learn
Cons: it picks up other beater signals somtimes when around cell phones etc.
Review: The radio performs nicely... and this is the but part. do not let the radio get hot sitting in the plane,car,truck etc. when it gets to hot it the tone changes to a high tone . the only way I know to get the normal sound/tone back,is to remove the battery and reinstall. thats seems to do the trick every time. the moral of the story. don't leave in hot areas. GREAT RADIO!!!

Saturday, April 21, 2007
Best Portable Nav-Com made!
by Fred West from Austin, Texas

Pros: Programming and making frequency changes is intuitive.
Cons: None that I can think of. Its expensive.
Review: The Vertex VXA-710 is compact, powerful, and easy to use. For emergency use I just plug in my headset and keep communicating. I never fly without it.

Saturday, January 13, 2007
by ladd from marysville,ohio
Pros: size a plus
Cons: a little complicated,but manageble
Review: extremely nice,small handheld transceiver--








Previous Customer Questions For Vertex VXA-710 "Spirit" NAV-COM Transceiver:
Ask Your Own Question
On Sunday, April 19, 2009 a customer asked:
Q:
Is there a speaker function with this transceiver?
A: This does have a built-in speaker and there is also an optional handheld speaker mic available as well.

On Friday, January 02, 2009 a customer asked:
Q:
What are the dimensions of the radio, and is the antenna removable?
A:

Case Size (W x H x D): 2.36' x 3.78' x 1.12' (60 x 96 x 28.5 mm) w/FNB-80LI
Weight (approx.): 9.9 oz. (280 grams) with FNB-80LI, antenna

Yes, the antenna is removable.



On Friday, December 28, 2007 a customer asked:
Q:
Is this made in the US?
A: This transceiver is made in Japan.
